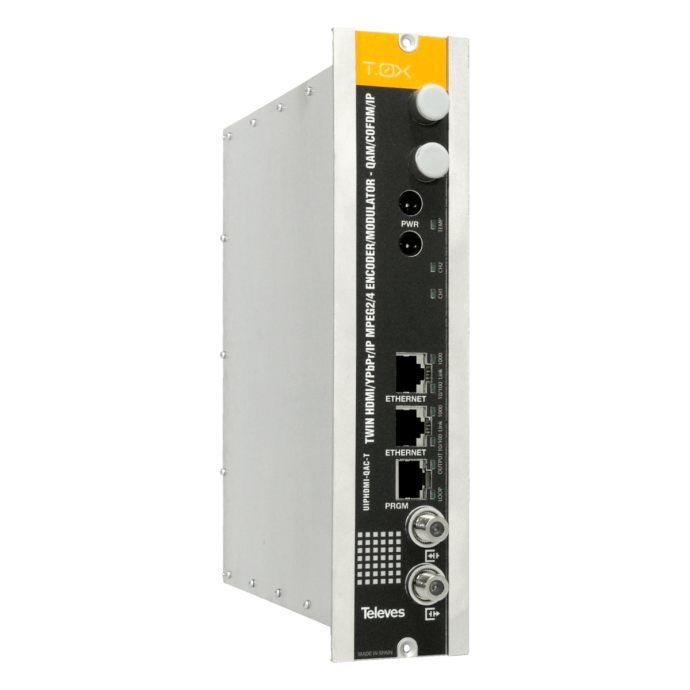

T.0X Encoder Modulator A/V-IP or IP-DVBT/DVBC Televes 563852

Device with two operating modes: as AV - IP/RF Encoder to convert Audio/Video signals to IP stream and RF output (DVB-T or DVB-C), and as AV/IP - RF Encoder to convert Audio/Video signals and IP streaming to RF output (DVB-T or DVB-C).

It stands out for its intuitive and simple configuration thanks to its embedded web interface, high RF output power without the need for an extra amplifier, multi-standard output format, excellent output quality (MER> 40dB), LEDs for monitoring the device and status. Of the signal. It has an MPTS mode (two physical inputs on the same IP) or SPTS (two physical inputs on two IPs).

Multiple types of input signals: HDMI, CVBS, YPbPr, SPdIf audio, etc.

Details

2 in 1 Modulator Encoder (AV to IP/RF or AV/IP to RF) T.0X series

What technical specifications does the Televes 563852 Modulator Encoder have?

INPUT
Video			2 sets 3 x RCA (Y, Pb, Pr) 2 sets 1 x RCA (CVBS)
Audio			2 sets 2 x RCA (L, R) 2 sets 1 x RCA (Digital) 2 sets 1 x Toslink (Optical)
Video + Audio			2 sets 1 x HDMI
IP Multicast			2 ports RJ45 switch Gbe SPTS or MPTS (UDP/RTP)
VIDEO ENCODER
Output format			MPEG-2 / H264
Resolution			480i, 480p, 576i, 576p, 720p, 1080i & 1080p Auto-scan of input resolution (1)
Aspect ratio			4:3, 16:9 y pass through
GOP			10, 12, 15, 16, 18, 20, 24 ó 30
AUDIO ENCODER
Output format			Dolby Digital AC-3 only Digital Loop) or MPEG1 Layer2 (analogue input HDMI PCM)
Sampling rate		kHz	48
Output
Frequency bands		MHz	46...862
Maximum output level		dBµV / dBmV	115/55 (103/43 with active loop-through)
MER		dB	>40
Spurious		dBc	-60
Annex A QAM	Modulation		16, 32, 64, 128, 256
	BaudRate	Mbaud	6,9
	Roll-off	%	15
	Code		Reed Solomon
	Spectrum mode		Normal / Inverted
	Frequency steps	kHz	250
COFDM	Modulation		QPSK, 16QAM, 64QAM
	Guard interval	µS	1/4, 1/8, 1/16, 1/32
	FEC		1/2, 2/3, 3/4, 5/6, 7/8
	Bandwidth	MHz	6, 7, 8
	Cell_id		Yes
	Frequency steps	kHz	125 / 166
IP	Transport Stream SP/MP		2 SPTS IP multicast outputs (UDP o RTP) / 1 MPTS output
PSI	Transport Stream ID		Editable
	Original Network ID		Editable
	Network ID		Editable
	LCN		Editable
	NIT		Editable
	SDT		Editable
	Tipo LCN		Generic / UK / NorDig V1 / NorDig V2
	Network Name		Editable
	Service PID		Editable
	Service Name		Editable
	Service ID		Editable
General
Voltage		Vdc	24
Consumption		W	<20,4
Protection index		IP	20
