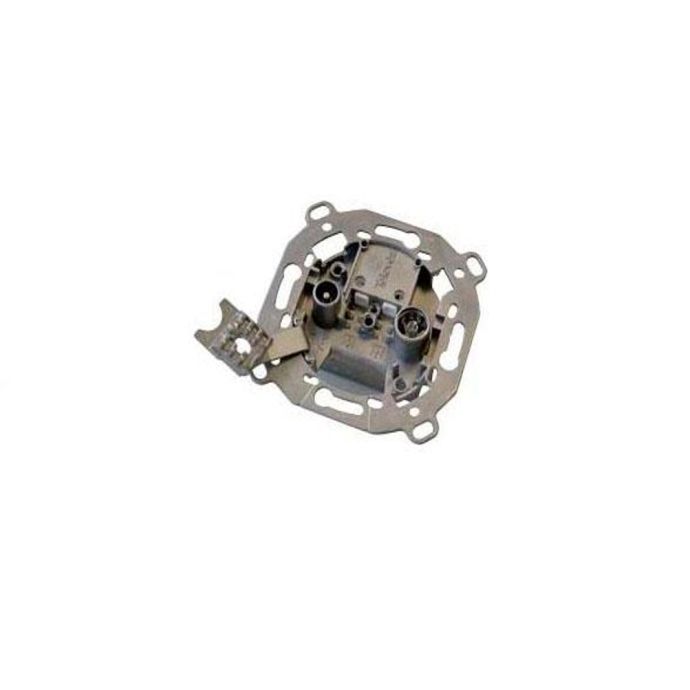

The Televes 5236 sockets are used in signal distributions up to 2400 MHz.
With the four available values, a cascade can be formed with well-equalized signal values. This shot is used in the intermediate section of the waterfall, with a loss of 20 dB for UHF and 24 dB for FI.
It has a current path for FI.
The Televes 5236 socket is an intermediate separator with losses of 20dG.
| Tipo | C20-SAT (5236) / C-SAT (523603) | ||||
| Banda | MATV (5-47 / 47-862MHz) |
SAT-FI (950-2150 / 2150-2400MHz) |
|||
| Conector | “CEI” Macho | “CEI” Hembra | |||
| Método de anclaje | Sin tornillos | ||||
| Rechazo entre salidas | dB | >5 / >10 | >18 | ||
| Salida de paso | Sí | ||||
| Pérdidas de inserción | dB | 0,6 | 1 / 1,4 | ||
| Atenuaciones | Salida: R/TV | dB | 20 | 23 | |
| Salida: SAT | 18 / 21 | 23 / 24,5 | |||
| Paso DC (24V – 350mA) | SAT → Entrada Salida → Entrada |
||||
| EAN | 8424450102800 |
|---|---|
| Hight | 0.071 |
| Length | 0.033 |
| Width | 0.072 |
| DTT System | DTT & SAT Distribution |
| SERIES DTT | CEI Connector |
| Color | Silver |
| TV-SAT Distribution Equipment | Connection |
| Entorno | Interior |
| TV-SAT Distribution Connection | IEC |
| Input signal | DAB, FI, FM, UHF, VHF |
| Insertion Loss (dB) | 24 |
| Product Brand | Televes |
