TDT-UHF Antenna Logarithmic 13.5 dB
Availability: In stock
24/48 Hours
Logic antenna of UHF of 13.5 dB.

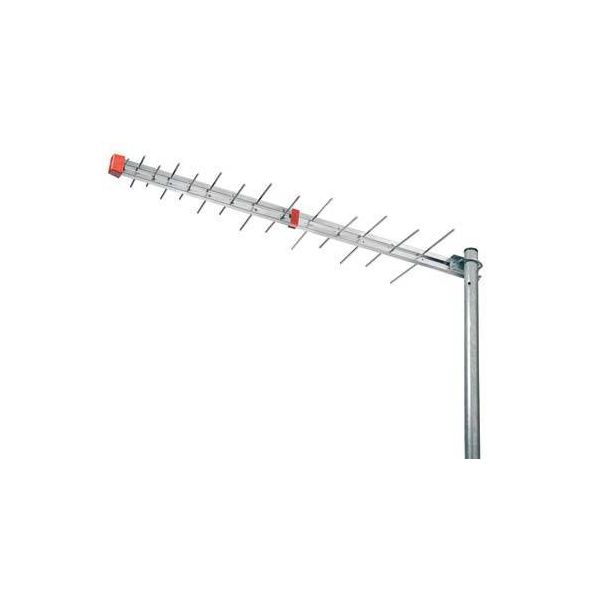

LOG2845F UHF Logoheroid Antenna 13.5 dB, for the reception of analog and digital channels of DTT television.
The logarithmic antennas are specially designed antennas to minimize visual impact, and they are very discreet.
They are also perfect for use in areas of strong wind, and because of their design have a very low wind resistance.
LogoTEEO's antenna LOG2845F from FTE for the reception of analog and digital channels.
What technical characteristics does the LOG2845F antenna have?
- Elements: 28
- Channels: 21-69.
- Gain (dB): 13.5
- Front / rear ratio (dB): 22-35
- Horizontal half-power beamwidth (-3 dB): 35-45º
- Medium power vertical beam width (-3 dB): 30-40º
- Impedance (Ohm): 75
- Length (mm): 1040
- Maximum diameter of the mast (mm): 50
- Weight (Kg): 0.6
More Information | EAN | 8436545306666 |
|---|
| Hight | 1.350 |
|---|
| Length | 0.120 |
|---|
| Width | 0.360 |
|---|
| DTT System | DTT Reception |
|---|
| SERIES DTT | Pasive |
|---|
| Type | DTT 5G |
|---|
| Entorno | Exterior |
|---|
| Orientation | Directive |
|---|
| Gain | Medium |
|---|
| Dipole | Passive |
|---|
| LTE compatible | No |
|---|
| Supply required | No |
|---|
| Product Brand | Fte |
|---|
| File | Label | Size | Download |
 | Ficha Técnica FTE LOG2845F para exteriores | 160.1 KB | Download |
