Telephone cable of 2 pairs to the cut

SKU
TEL217101A
Brands: Televes
€0.57 Tax included
Availability: In stock
24/48 Hours

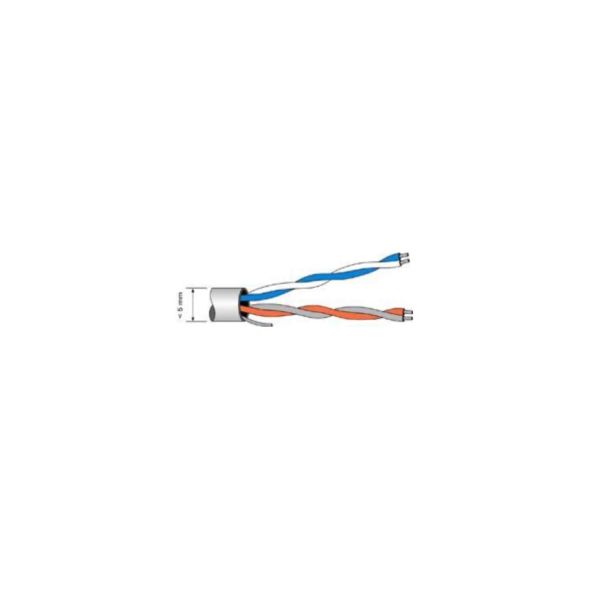

Telephone cable of 2 pairs to the cut

Televes 217101 telephony cable consists of two twisted pairs with pure electrolytic copper conductor of gauge not less than 0.5 mm in diameter.

One or two pairs of cable will be used in the dispersion network and in the user's internal network. Cables of more than 25 pairs are used for the realization of the main basic telephony network.

-
+

The 217101 telephone cable is a 2-pair telephone cable.

What technical characteristics does the 217101 clable have?

Reference  217101
 No. of pairs  2
 Mechanical specifications
Inner
conductor
Diameter mm 0,5 ··· 0,6
Insulation  material  PE
Outer sheath material  LSFH
Thickness  mm  0,7
Diameter  mm  5
 color  White
Twisting length mm  < 55
Electric specifications
Ohms resistance  Ω/Km  < 98
Insulation resistance MΩ/Km  > 1000
Conductor/shielding
dielectric strength
 Vac  > 350
 Vdc  > 500
Mutual capacitance  nF/Km  < 58
Attenuation

 dB/Km


 1,7
 1,8
 2,3
 9
 24
More Information
EAN 8424450151167
Hight 0.320
Length 0.100
Width 0.310
System DTT Telefonía
Serie Al Corte
Product Brand Televes
