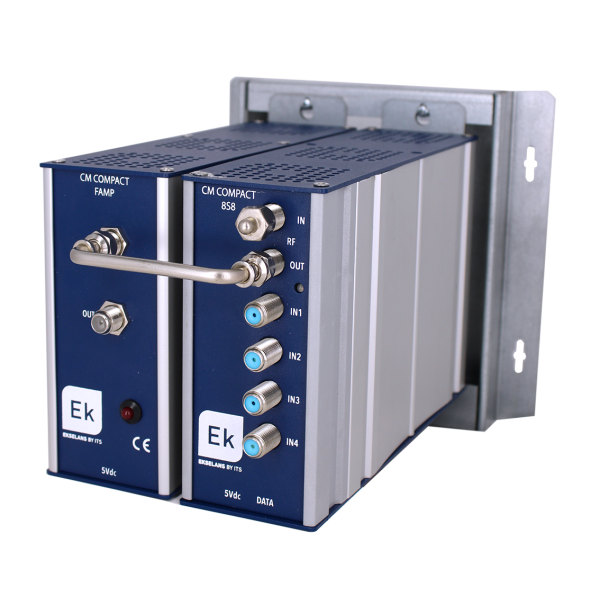

Transmodulator 4 inputs (8 tuners) DVB S-S2 multistream and 8 Outputs + Modular FA

SKU

EKCMCOMPACTPLUS8S8

Brands: EKSELANS

Availability: On request

Delivery: 1 to 7 days

€3,187.02 Tax included

Ek 4 Inputs and 8 Outputs Transmodulator Headend

This satellite transmodulator generates signals coming from different TVSAT transponders. It has 4 satellite inputs and 8 tuners, with independent control of each input 13/18V - 22KHz - DiseqC. Supports multistream.

At the output we find 8 outputs distributed in two groups of 4 + 4 adjacent. Programmable QAM/COFDM output.

Its output level is 95 dBμV and has a MER greater than 35dB, which provides excellent quality. Its modular power supply incorporates output amplifier with a level of up to 112 dBμV.

The programming of the transmodulator is done through software with a PC.

Details

Technical Specifications of the Ek 4 Input and 8 Output Transmodulator Headend

Reference		CM COMPACT PLUS 8S8
Code		085008
ENTRANCE
Number of tuners		8
Input connectors		4
Input frequency	MHz	950 - 2150
Entry level	dBμV	40 - 79
Channel bandwidth	MHz	36
Symbol rate	MSps	1 - 45
Modulation type		QPSK / 8PSK / 16APSK / 32APSK
Remote power supply (LNB)	V / KHz	13/18 - 0/22 (700mA max.)
DiSEqC		A / B / C / D
Unicable		SatCR / dCSS
EXIT
Number of outputs		1+1 (RFMIX)
mixing port	dB	<1,5
Output frequencies	MHz	170 - 862
Maximum output level	dBμV	108
Output regulation	dB	20
DVB-T Modulation
Number of channels		8 in two adjacent groups of 4+4
Output frequency	MHz	170 - 862
Constellation - Mode		QPSK, 16QAM, 64QAM - 2K
FEC		1/2, 2/3, 3/4, 5/6, 7/8
Guard interval		1/4, 1/8, 1/16, 1/32
MER	dB	>35
DVB-C Modulation
Number of channels		8 in two adjacent groups of 4+4
Output frequency	MHz	50 - 862
Constellation		16, 32, 64, 128, 256QAM
Symbol rate	Mbps	4 … 6,96
MER	dB	>40
GENERAL
Local programming		Via USB cable (included)
Feeding	Vdc / A	5 - 10
Consumption (Without LNB)	mA	2300
Operating temperature	ºC	0 - 40
