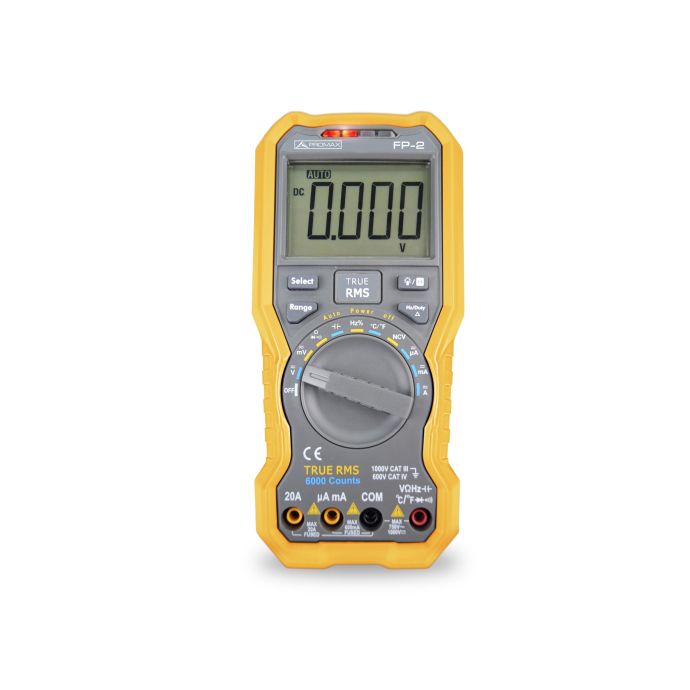

The PROMAX FP-2 digital multimeter is a measuring instrument that is designed to accompany the professional training student both during the training and in his later working life.
In training centers it is a valid instrument for measuring low voltage installations and electronic components (diodes, resistors and capacitors) assisted by crocodile clips. It also has a microprocessor controlled autoranging function that avoids the typical faults that a student can cause due to errors in the selection of the scale of measurement.
In work environments, it is perfect because it integrates a rubber anti-shock protector, non-contact alternating voltage detector and measurement of the true effective value.
What technical characteristics does the FP-2 multimeter have?
VOLTAGE 600 mV to 750 V (AC), and 60 mV to 1000 V (CC) TRMS
CURRENT 600 μA to 20 A (AC / DC)
FREQUENCY 10 Hz to 10 MHz
TEMPERATURE -50ºC to 400ºC
OTHER FUNCTIONS AND CHARACTERISTICS
Resistance
Capacity
Diodes
Continuity
Frequency test
Duty Cycle
Temperature probe
Non-contact voltage detection
Data retention
LED work flashlight
Anti-shock protector
Folding support
PRESENTATION Presentation: Backlit 4-digit graphic LCD with 58.5 x 51 mm
