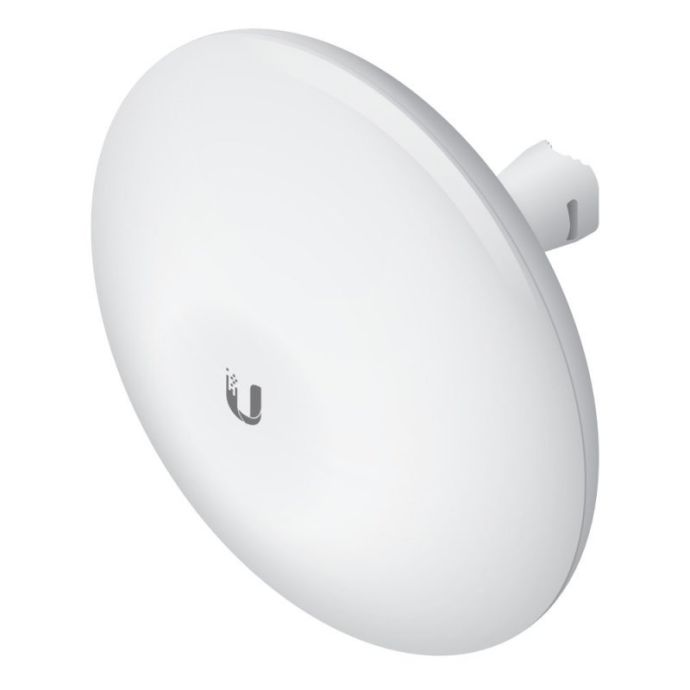

Ubiquiti NBE-5AC-GEN2 NanoBeam AirMax 5GHz 19dBi

SKU
UBINBE5ACGEN2
Brands: Ubiquiti
13% Discount for professionals
Ubiquiti
Availability: Out of stock
Consult
Be the first to review this product

Ubiquiti NBE-5AC-GEN2 NanoBeam AirMax 5GHz 19dBi Antenna

Compact outdoor antenna for 5GHz data links, +450 Mbps throughput, with a maximum distance of 15 km. Excellent directivity and performance antenna in noisy environments.

Ubiquiti AirMax ac technology offers improved latency, noise immunity, scalability, and significantly higher performance. The Time Division Multiple Access, or TDMA, protocol enables unprecedented scalability by using a pre-assigned time slot scheme for each client, eliminating hidden node collision and maximizing efficiency.

Integral design with radio interface inside the antenna, so you don't need cables. Improving performance by eliminating cable losses. Faster processor and versatile innovative mechanical design.

"Plug and Play" installation, NanoBeam AC can be mounted to posts, railings or walls and allows freedom of alignment of three axes.



Ubiquiti outdoor antenna for data links at 5GHz, 450 Mbps and up to 15 km distance

What technical specifications does the Ubiquiti NBE-5AC-GEN2 Antenna have?

  • Power supply: 24V, 0.5A Gigabit PoE
  • Power mode: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Supported voltage range: 20-26VDC
  • Maximum consumption: 8.5W
  • Gain: 19 dBi
  • Operating frequency: 5170 - 5875 MHz
  • LEDs: (1) Power, (1) LAN, (4) WLAN
  • Channel width
  • PTP mode: 10/20/30/40/50/60/80 MHz
  • PTMP mode: 10/20/30/40 MHz
  • Polarization: Dual Linear
  • UV stabilized plastic housing
  • Pole mount kit included
  • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
  • Operating temperature: -40 to 80 ° C
  • Operating humidity: 5 to 95% Non-condensing
More Information
More Information
EAN 810354026348
Hight 0.000
Length 0.000
Width 0.000
System 4G / 5G / SIM
SERIE Punto a Punto
Color White
Network Equipment 4G/5G Antenna
Ports 1
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand Ubiquiti
