GENERAL DATA

Type

Modular

Height (mm)

90

Width (mm)

100

Depth (mm)

35

Product color

Aluminium, Black RAL9005, Transparent

Product weight (g)

275

Type of finishing materials

Polycarbonate, Aluminium alloy

Flush-mounted

Yes, with a dedicated accessory

Wall-mounted

Yes, with a dedicated accessory

COMPATIBLE SYSTEMS

Audio/video Simplebus 2 with power supply art. 4888C

Yes

AUDIO FEATURES

Microphone

MEMS audio digital sensor, omnidirectional

Loudspeaker

28mm (Ø), 8 Ohm, 1W (2)

Technologies implemented

Full-Duplex

CAMERA FEATURES

Camera

Colours

Sensor type

1/3" CMOS

Lens optical dimensions (mm)

1.79

Angle of view (H x V - °)

120 x 90

Sensitivity (lux)

0.45

Video resolution (H x V - pixel)

1288x968

ELECTRICAL CHARACTERISTICS

Type of power supply

External power supply

Supply voltage

33VDC

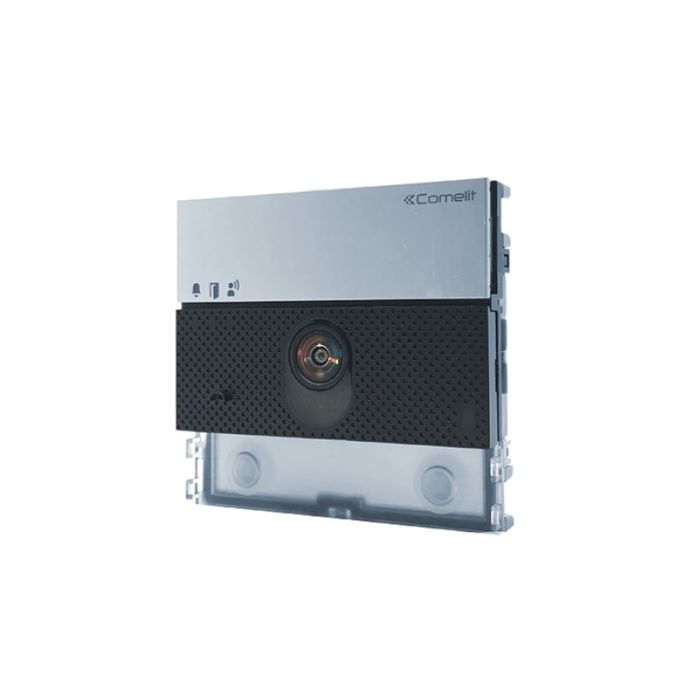

ULTRA SIMPLEBUS1 AUDIO/VIDEO MODULE

ELECTRICAL CHARACTERISTICS

Absorption in stand-by (W)

1.5

Maximum absorption (W)

6

HARDWARE FEATURES

Call type

Push-buttons

Type of buttons

Mechanical

Number of push-buttons (n°)

2

Backlight colour

White, Off

Clamps

L L V+ V- COM NC NO SE GND RTE TX- TX+ RX- RX+

Number of inputs (n°)

1

Number of outputs (n°)

2

Type of outputs

Relay (C-NO-NC, 4A@12÷24 VAC/VDC, 10A peak), SE: unlock pulse of 4A, holding current of 200mA for 12VAC / DC locks (maximum impedance 18 Ohm)

Communication ports

Micro-USB

Twilight sensor

Yes

SETTINGS

Loudspeaker volume

Yes

Microphone volume

Yes

Backlight brightness

Yes

PROGRAMMING MODE

Manual programming (via Dip Switch)

Yes

ViP Manager software

Yes

ENVIRONMENTAL AND COMPLIANCE FEATURES

IP protection rating

IP65

Vandal Resistant rating (IK code)

IK08

Operating temperature (°C)

-25 ÷ 55

ULTRA SIMPLEBUS1 AUDIO/VIDEO MODULE

ENVIRONMENTAL AND COMPLIANCE FEATURES

Operating humidity (RH max) (%)

25 ÷ 95

Environmental class

IV

CE certifications

RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)

MAIN FUNCTIONS

Door opener

Yes

Number of auxiliary relays (n°)

1

Input for local door release button

Yes

Door open signaling input

Yes

Visual indications of system status

Yes

Acoustic signals of system status

Yes

Speech synthesis of system status

Yes
