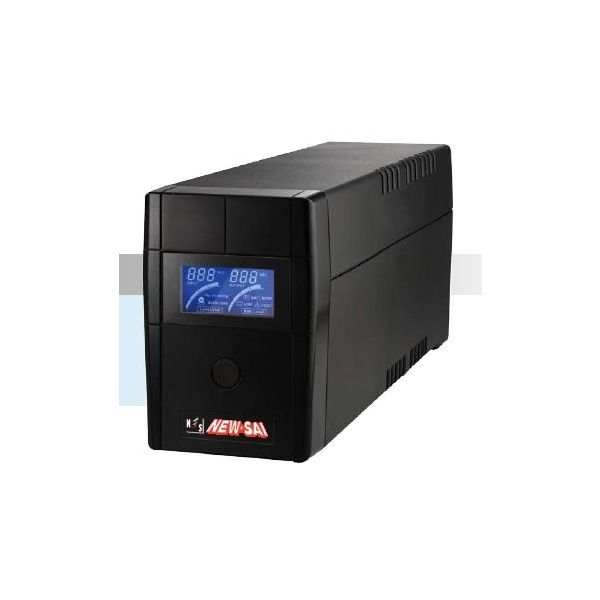

UPS Blazer MP1500 1500VA/900W NEW UPS

Name: UPS Blazer MP1500 1500VA/900W NEW UPS
Brand: NEW-SAI
SKU: SAI13150
Price: 242.24 EUR
Availability: InStock

SKU

SAI13150

Brands: NEW-SAI

€242.24 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

UPS Blazer MP1500 1500VA/900W LCD 2xschucko+IEC+RS232+USB

The new line-interactive Blazer UPS range has the best features on the market with state-of-the-art microprocessor control. Designed to protect computing devices against power outages, power surges or overloads.

With a power of 1500VA and 900W, this power supply system has a range of up to 10 minutes. The device has 2 Schucko outputs and 2 x IEC. Its batteries are quickly charged from 910% with charge in 6-8 hours, in addition to charging them with the equipment stopped in OFF mode.

It has an LCD screen that displays a large amount of information, such as the status of input data such as consumption, voltage, battery voltage or UPS load level.

Microprocessor controlled that guarantees high reliability. Includes USB communication AND RJ-11 port for telephone protection. You can control the UPS by software through the RS232 port.

Suitable for the connection of up to 3 PCs + Monitor. The connection of laser printers is not recommended, since they damage the batteries due to the consumption peaks they have (in the case of matrix printers there is no problem).

Details

Technical Specifications of the UPS Blazer MP1500 1500VA/900W LCD 2xschucko+IEC+RS232+USB

Description
The NEW UPS Blazer MP MicroPower range of 1000/1500/2000/2400/3000 are Line Interactive UPSs with a microprocessor control design including the dynamic control of the AVR booster, it has cold start functions and an RS232 or USB interface port In short, it is the ideal solution at the lowest cost for sensitive equipment with critical missions. PC's and their peripherals. As a novelty, this range of models is capable of working with some generators on the market.
Specs
MODEL BLAZER MP MP 1000 CODE 13100		MP 1500 13150	MP 2000 13200	MP 2400 13240	MP 3000 13300
POWER	1000VA / 600W	1500VA / 900W	2000VA / 1200W	2400VA / 1440W	3000VA / 1800W
INPUT
Voltage Voltage Range Frequency Range	110/120 VAC or 220/230/240 VAC 81-145 VAC / 162-290 VAC 60/50 Hz (auto detection)
OUTPUT
AC Voltage Regulation (Battery Mode) DC Voltage Option (USB) Frequency Range (Battery Mode) Transfer Time Wave Type (Battery Mode)	±1% 5V 60 Hz or 50 Hz ±1 Hz Typical 2-6 ms, maximum 10 ms. Simulated sinusoidal
BATERIAS
Batteries Type and Number Autonomy Time (Load 2PC 150 W) Typical Recharge Time	12 V/7 Ah x 2 10 min.	12 V/9 Ah x 2 10 min.	12 V/9 Ah x 2 8 min.	12 V/7 Ah x 4 20 min.	12 V/9 Ah x 4 25 min.
	6 - 8hours recovers up to 90% of the capacity
INDICATORS
AC mode Battery Mode Fault Mode	lit green Blinking Amber On Red
PROTECTION
Full Protection	Protection against Overload, Discharge and battery overcharge
ALARMS
Battery mode Low Battery Overload Battery Replacement Fault Alarm	Beep every 10 seconds Beep every second Beep every 0.5 seconds Beep every 2 seconds Continuous beep
PHYSICAL
Dimensions, D X W X H (mm) Net weight(kgs)	338 X 162 X 150	380 X 158 X 198		436 X 145 X 213
	13	14	15	20	23
OPERATING ENVIRONMENT
Humidity Noise level	0-90 % RH @ 0- 40°C (non-condensed) Less than 40dB
CONTROL SOFTWARE
Optional USB / RS-232 ports	Windows family, Linux, Sun Solaris, IBM AIX, Unix, Compaq True64, SGIIRIX, FreeBSD, HP-UX, Mac
