UTP CAT6 Cable Indoor White CU CPR CCA Coil 305 m FTE

Name: UTP CAT6 Cable Indoor White CU CPR CCA Coil 305 m FTE
Brand: Fte
SKU: FTEN601WD
Price: 108.45 EUR
Availability: InStock

SKU

FTEN601WD

Brands: Fte

€108.45 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

White Indoor LAN Cable UTP CAT6 CCA N601WD

FTE's N 601 WD cable is sold in a 305 meter coil. The cable is an unshielded 4-pair twisted cable. The cable is Category 6 composed of 0.57mm diameter copper-coated aluminum (CCA) conductor, an HDPE sheath material of the pairs and halogen-free LSZH sheath.

The cable has a tear thread, which makes it easy to strip the cable. It is white. It has a reaction to fire category Dca.

This cable can be used to install data networks, internet connections, install security cameras, intercoms, etc.

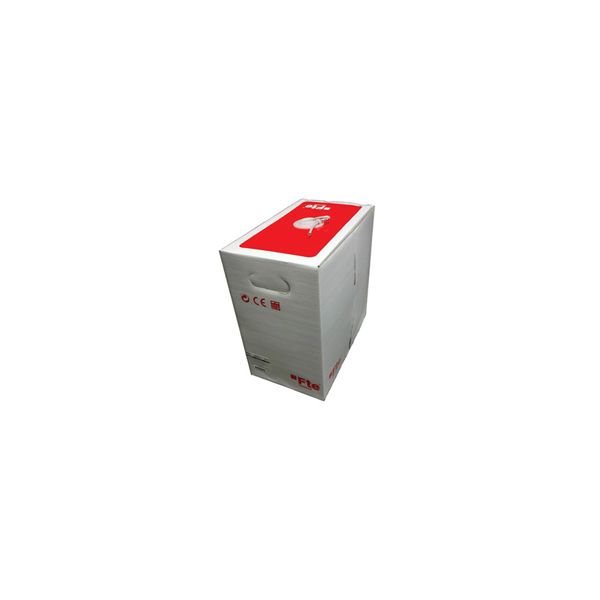

The coil is 305m long and is packed in a cardboard box weighing 10.9kg.

Details

Technical Specifications of the White Indoor LAN Cable UTP CAT6 CCA N601WD

Technical specifications LAN Cable Cat. 6 N 601 WD
N 601 WD
Code	2220610
Description	LAN cable cat 6 U/UTP CCA LSZH 304.8m (1000ft)
Category	6
Type of cable	U/UTP
Pair shielding	No
Global shielding	No
No. drivers	4 pairs
Conductive material	CCA
Conductor diameter	0.57mm
Pair cover material	HDPE
Pair diameter	0.92mm
ripping thread	Yeah
Separator	Yeah
Outer cover material	LSZH
Outer cover diameter	6.1±0.3mm
Outer cover color	White
Length	304.8 m (1000 ft)
Weight	10.9kg
Standardization	ISO/IEC 11801, EN 50173, EN 50288. EIA/TIA 568C.2, EN 50575:2014+A1:2016
Reaction to fire	Dca-s1, d1, a1
Declaration of Benefits (DoP) No.	DOP-2220610
EAN code	8436545307113
Presentation	cardboard pull box
Packing quantity	1

More Information

More Information
EAN	8436545307113
Hight	0.420
Length	0.220
Width	0.400
System DTT	CAT6
Serie	305m
Entorno	Interior
Color	White
Cobertura Exterior Cables	LSFH
Conductor Interno Cables	Copper Clad Aluminum (CCA)
Product Brand	Fte
