VEO 4.3" DUOX PLUS Monitor Fermax (2 wires) OUTLET

Name: VEO 4.3" DUOX PLUS Monitor Fermax (2 wires) OUTLET
Brand: Fermax
SKU: FER9445OUT
Price: 94.97 EUR
Availability: OutOfStock

SKU

FER9445OUT

Brands: Fermax

Availability: Out of stock

Delivery: Consult

Be the first to review this product

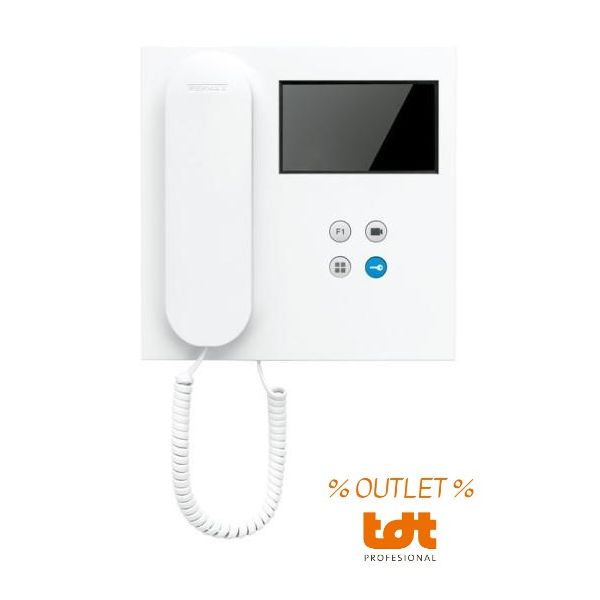

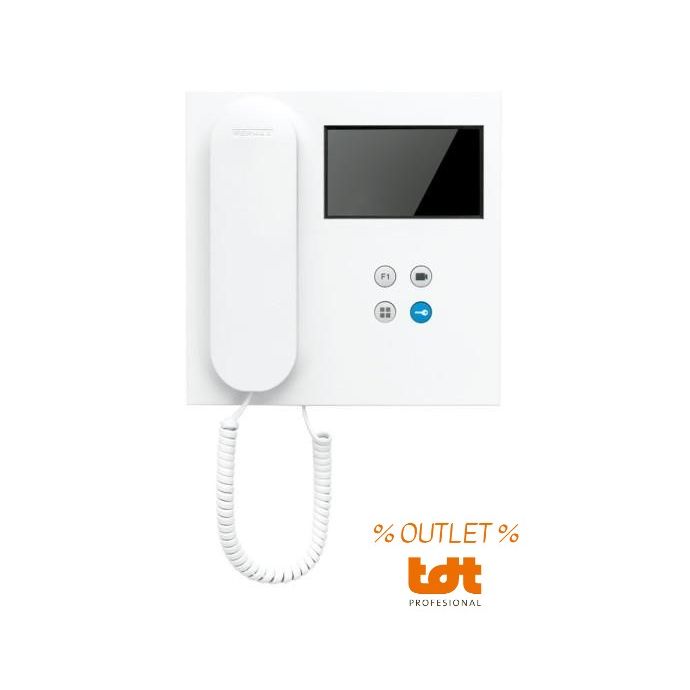

OUTLET: VEO DUOX PLUS Color 4.3" Monitor Fermax 9445

Fermax 9445 monitor compatible only with DUOX or DUOX PLUS systems.

Modern design made of resistant ABS plastic, white and easy to clean. Telephone + 4.3" color screen to install on the wall. Very simple connection with only 2 non-polarized wires.

It supports hands-free communication and the best video door entry features on the market for those users who decide to jump to the image.

Now the entire range of VEO DUOX PLUS monitors work with the same Fermax 9447 connector (not included).

What is TDTprofesional OUTLET?

Our Outlet category is made up of products from our customers' returns, which are in perfect condition and have been tested by our technical department to guarantee their correct operation. The product packaging may present bumps or the product may not be shipped in its original packaging. The products in our Outlet include a special discount and have the same guarantee as new products.

Details

OUTLET: VEO Color 4.3" monitor for DUOX PLUS 2-wire video intercom

What technical specifications does the Fermax 9445 Monitor have?

GENERAL CHARACTERISTICS

Technology: DUOX PLUS (non-polarised 2 wire full digital system)
Audio/Video system: Audio/Video Color
Set-up (Installation): Surface mounted (order connector ref. 9447 separately)
Desktop support: Yes (ref. 9410)
Handset with magnet to facilitate the hang up: Yes
Induction loop available: Yes (replace handset with ref. 3443 or order monitor ref. 9455 which already includes the induction loop))
Screen dimensions: 4,3” (Panoramic 16:9)
Screen resolution (H x V): 480 x 272
Color of the product: Matt white
Number of pushbuttons: 4
Kind of pushbuttons: Mechanical (silicone)
Number of leds for lighted indications: 1 (red with 3 states: always ON, slow/fast blinking)

PROGRAMMING OF THE TERMINAL ADDRESS

From the terminal: From the OSD menu
From the outdoor panel or guard unit: Yes
From the outdoor panel throughout the apartment door bell: Yes

FEATURES

Automatic picture capture when the visitor calls (PHOTOCALLER): Yes (1 photo/call, until 150 photos, 368 x 288 pixels). This feature can be enabled by the user. Disabled by default.
Guard unit call: Yes (by means of the door release button)
Auto-on: Yes (with 3 outdoor panels/cameras)
OSD menu: Yes
Additional function F1: Yes (Button F1 sends a negative and/or command)
Additional function F2: Yes (it only sends command, no negative)
Apartment door bell differentiated from the outdoor panel: Yes
Connection for additional devices (call extension, light/buzzer activator, etc.): Yes (ref. 2040, ref. 2438, ref. 3267)
Additional terminals on the same address: Yes, max. 2 additional terminals (additional power supply can be required)
Doormatic (automatic door release for offices, etc.): No

ADJUSTMENTS

Date and time: Yes
Ring tones selection: Yes (5). Configurable for Block Panel 0, Block Panel 1, General Entrace
Panel 0 and Concierge unit.
Call volume control: Yes (10 levels by OSD menu)
Do-not-disturb mode: Yes (by OSD menu) + Red led indication
Audio volume control: Yes (10 levels by OSD menu)
Brightness, color and contrast control: Yes (by OSD menu)

TECHNICAL FEATURES

Product dimensions (width x height x depth) mm: 200 x 200 x 23 (44 including handset)
Time to answer or open the door since the call is done: 30 s.
Conversation time: 90 s.
Conversation privacy: Yes
Voltage: 18-24 Vdc
Maximum consumption: 5.2 W
Standby consumption: 0.8 W
Working temperature (ºC, ºF), Humidity: [-5ºC, +40ºC][23ºF, 104ºF], [0%, 90%]
Line adaptor included in the terminal: Yes (A, C, default position OFF)
Connections: Bin, Bin, Bout, Bout, -, A+, F1, T
