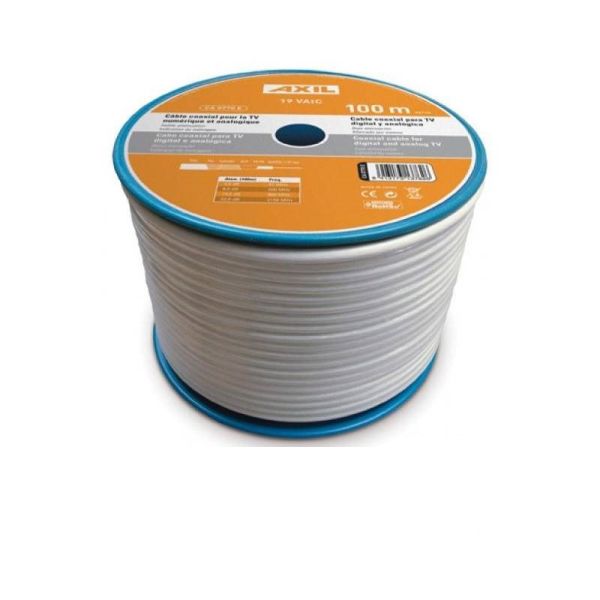

White PVC Indoor Coaxial Cable Coil 100m by Engel

SKU
ENGCA0770E
Brands: Engel Axil
€31.50 Tax included
Availability: In stock
24/48 Hours

White PVC Indoor Coaxial Cable Coil 100m by Engel

This coaxial cable has a length of 100 meters, is white and comes in a coil for more comfortable transportation.

Coaxial cable is used in home installations for television connections, whether cable, satellite or antenna.

It is made with white PVC cover, recommended for indoor installations. Its inner conductor is made of copper with aluminum mesh.

It can be used both to make the connection between the socket and a TV device, as well as to expand the TV-SAT distribution in the home or in professional applications.

-
+

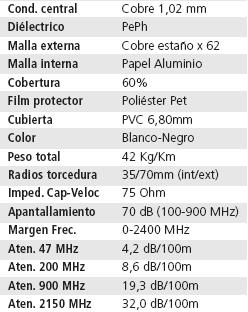

Specifications of the Engel White PVC Coaxial Coaxial Cable 100m

Center conductor: Copper 1.02mm

Dielectric: PePh

Outer mesh: Tinned copper x 62

Inner mesh: Aluminum foil

Coverage: 60%.

Protective Film: Pet Polyester

Cover: PVC 6.80mm

Color: White

Total weight: 42kg/km

Radios Twist: 35/70mm (int/ext)

Impedance Cap-Veloc: 75Ohm

Shielding: 70dB (100-900MHz)

Frequency Range: 0-2400MHz

Attenuation 47MHz: 4.2dB/100m

Attenuation 200MHz: 8.6dB/100m

Attenuation 900MHz: 19.3dB/100m

Attenuation 2150MHz: 32dB/100m

More Information
EAN 8413173137626
Hight 0.200
Length 0.200
Width 0.200
System DTT RG6
Serie 100m
Entorno Interior
Color White
Cobertura Exterior Cables PVC
Conductor Interno Cables Copper (Cu)
Material Malla Coaxial Tinned Copper (CuSn)
Product Brand Engel Axil
