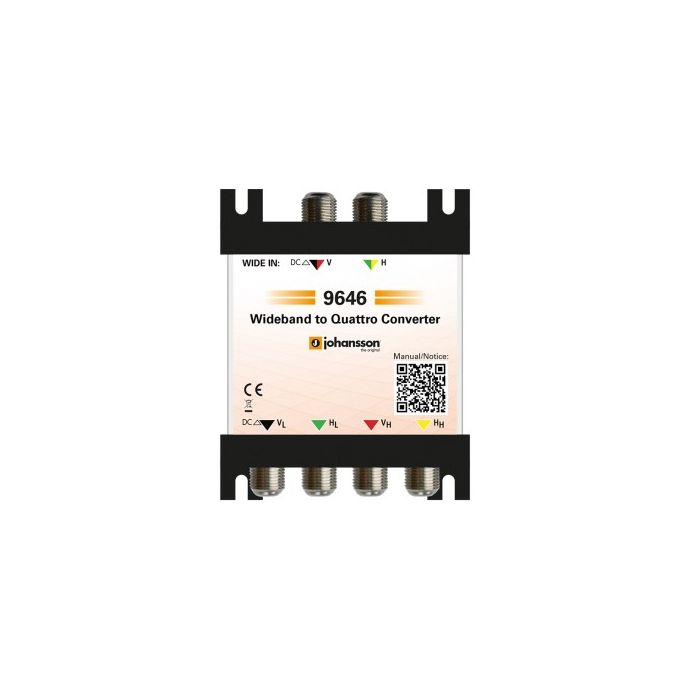

Wideband LNB to Quattro LNB converter from Johansson

Name: Wideband LNB to Quattro LNB converter from Johansson
Brand: Johansson
SKU: JOH9646
Price: 153.09 EUR
Availability: InStock

SKU

JOH9646

Brands: Johansson

€153.09 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

Wideband LNB to Quattro LNB Converter

This converter is a device that is placed after the broadband LNB (like JOH9720), with which we will be able to go from 2 outputs to the 4 polarities of a satellite. The two signals (one horizontal and one vertical) of the broadband LNB will enter from the converter. Each output will contain the high and low band of the bias. The converter will separate them into the 4 available polarities: low vertical, high vertical, low horizontal and high horizontal.

In addition, it has a current passage at the VL output to power the Wideband LNB.

This type of converter is used when we have hybrid systems with a combination of new broadband decoders and other decoders.

It has 2 inputs (horizontal and vertical) and 4 outputs (VL, VH, HL, HH). It is a very compact device with small dimensions: 90x80x40mm.

Details

Technical Specifications of the Wideband LNB to Quattro LNB Converter

Inputs	-	2
Outputs	-	4
Input frequency (MHz)	MHz	290 – 2340
Output frequency (MHz)	MHz	950 - 2150
Input/output connectors	Ohm	75 (F type Female)
Output level	dBµV	55 to 80
Input level	dBµV	54 to 79
Conversion gain	dB	0 to 5
Isolation	dB	26
Return loss	dB	>=8 (Typ 12)
Band and polarity	-	V : Vertical 290-2340MHz input H : Horizontal 290-2340MHz input VL : Vertical low-band 950-1950MHz output HL : Horizontal low-band 950-1950MHz output VH : Vertical hi-band 1100-2150MHz output HH : Horizontal hi-band 1100-2150MHz output
DC input voltage	V	10 – 20
Max DC current consumption	mA	< 150 @ 20 Volt
Power supply	-	From STB or multiswitch (VL)
Dimensions	mm	90x80x40
