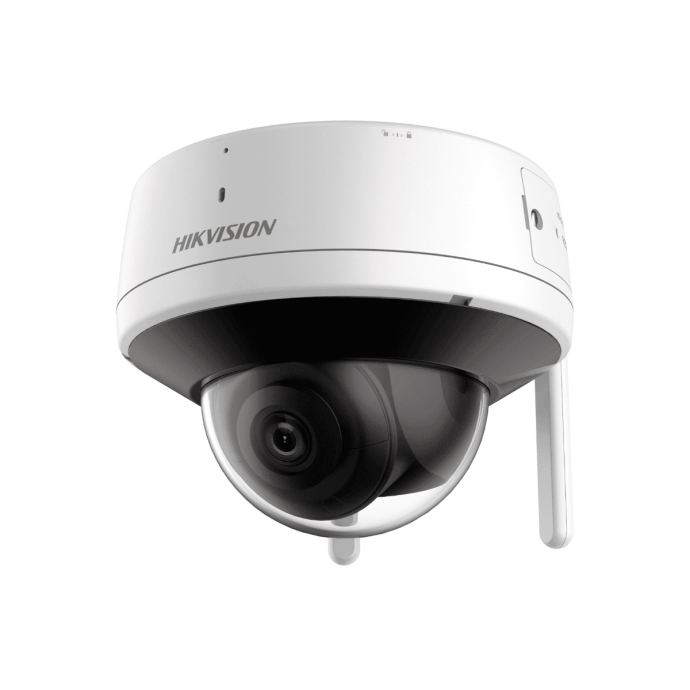

Cámara MiniDomo IP 4Mpx Fija 2.8mm IR30m MicroSD de Hikvision

Cámara

• Sensor de imagen1/3" Progressive Scan CMOS
• Max. Resolución2560 × 1440
• Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Tiempo de obturación1/3 s to 1/100,000 s
• Día y NocheIR cut filter
• Ajuste de ánguloPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lente

• LenteFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111°
• 4 mm, horizontal FOV 79°, vertical FOV 40°, diagonal FOV 94°
• AperturaF1.6
• Iris TypeFixed
• Montura del lenteM12
• Depth of Field

                     2.8 mm: 1.4 m to ∞

                     4 mm: 1.5 m to ∞

DORI

• DORI
• 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
• 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Iluminador

• Tipo de luz suplementariaIR
• Rango de luz suplementariaUp to 30 m
• Luz de suplemento inteligenteYes
• IR Wavelength850 nm

Vídeo

• Main stream

50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720)

• Sub-stream

50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)

• Compresión de video

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264

• Vídeo bitrate: 32 Kbps to 8 Mbps
• Tipo H.264: Baseline Profile,Main Profile,High Profile
• Tipo H.265: Main Profile
• Bit Rate Control: CBR,VBR

Red

• Protocolos TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
• Vista en vivo simultánea: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• Seguridad: Password protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS
• Usuario/operador: Up to 32 users. 3 levels: administrator, operator and user

Almacenamiento en red

• NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

• Wired network: Hik-Connect, iVMS-4200
• Wi-Fi: iVMS-4200
• *Wi-Fi connection with Hik-Connect directly is not possible.

Navegador web

• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi

• Protocolo de Wi-Fi802.11n: OFDM,802.11b: CCK, QPSK, BPSK,802.11g: OFDM
• Rango de frecuencia: 2.412 GHz to 2.472 GHz
• Canal de ancho de banda: 20/40 MHz
• Modulación: 802.11n: OFDM ,802.11b: CCK, QPSK, BPSK,802.11g: OFDM
• Ratio de transferencia: 11n: up to 300 Mbps
• Alcance inalámbrico: Up to 120 m (The performance varies based on actual environment)
• Antena: 2 Antennas

Imagen

• Configuración de imagen: saturation, brightness, contrast, sharpness, adjustable by client software or web browser
• Interruptor día/noche: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Mejora de la imagen: BLC, 3D DNR
• Máscara de privacidad: 4 programmable polygon privacy masks

Interfaz

• Micrófono incorporadoYes
• Altavoz incorporadoYes
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Reset KeyYes
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

General

• Alimentación: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
• Idioma: English, Ukrainian
• Condiciones de almacenaje: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Función general: Anti-banding, heartbeat, mirror, password protection, watermark, IP address filter
• Condiciones de inicio y funcionamiento: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Material: Polycarbonate cover, polycarbonate body
• Dimensión: Ø126 mm × 96.1 mm (Ø5 × 3.8\")"
• Dimensión del paquete: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
• Weight: Approx. 590 g (1.3 lb.)
• Con peso del paquete: Approx. 989 g (2.2 lb.)
