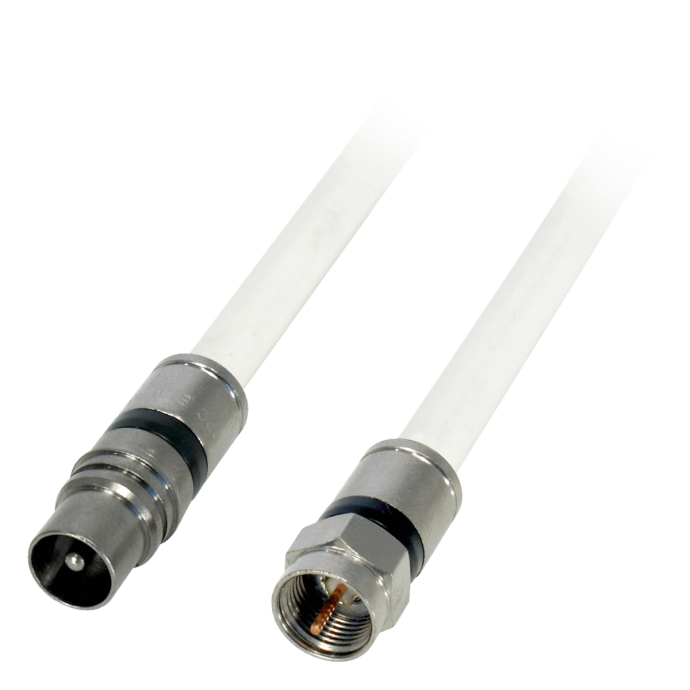

1.5m TSH Coaxial Cable Lead F - IEC Male Compression Connectors

SKU
TEL3856
Brands: Televes
€11.59 Tax included
Availability: In stock
24/48 Hours

1.5m Coaxial Cable Lead TSH Class A++ F - IEC Male Televes 3856

1.5 meter 75Ω coaxial cable patch cord, pre-connected with F Male (ref. 3802) to IEC Male (ref. 3818) compression connectors. Manufactured with triple-shielded, class A ++ SK2000plus cable.

Cable manufactured with copper conductor and tinned copper mesh (Cu/CuSn), triple shielded (TSH) and class A++, which provide great immunity to interference due to its high shielding. This type of cable is recommended for routes with high levels of electromagnetic noise.

This coaxial extender is ideal for the connection between the TV socket and the SAT receiver. Also perfect for use in professional applications due to its minimal losses.



-
+

1.5m Coaxial Cable Lead Triple Shield and Class A++ with F - IEC Male compressión connectors

What technical specifications does the Televes 3856 Coaxial Cable have?

References / Art. Nr. 3856xx / FS-KS20xx
 Cable type Class A++
 Inner conductor  Ø mm 1.02
 Material  Cu (copper)
 Resistance ohm/Km 22
 Dielectric  Ø mm 4.6
 Material  PEE (foam polyethylene)
 Over lapped foil  Material Aluminium + Polyester
 Braid  Material  CuSn (tinned copper)
 Resistance ohm/Km 10.5
 Coverage % 82
 2nd shielding film Si
 Outer sheath  Ø mm 6.7
 Material  PVC (polyvinyle clorhidre)
 Minimum bending radius mm 33.5
 Shielding at 1GHz dB >105 (typ. 130)
 Capacitance pF/m 54
 Impedance 75
 Velocity ratio % 84
 Attenuations dB/m
 Frequency  200 MHz 0.09
 500 0.14
 800 0.18
 1000 0.21
 1350 0.25
 1750 0.28
 2050 0.31
 2300 0.32
More Information
EAN 4031136022099
Hight 0.012
Length 0.012
Width 1.559
System DTT RG6
Serie 1.5m
Entorno Interior
Color White
Cobertura Exterior Cables PVC
Conductor Interno Cables Copper (Cu)
Material Malla Coaxial Tinned Copper (CuSn)
Product Brand Televes
