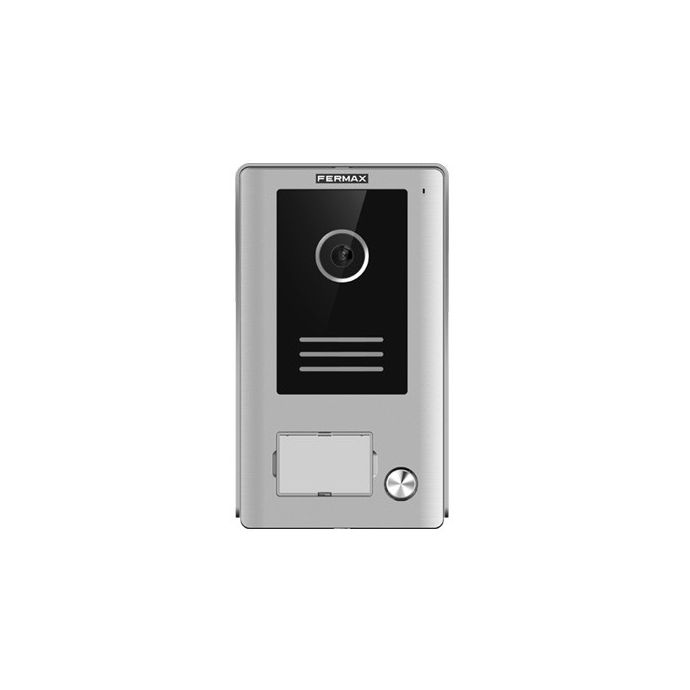

1-line WAY-FI video card with visor

SKU
FER1438
Brands: Fermax
€143.14 Tax included
Availability: In stock
24/48 Hours

WAY-FI video card with visor

The new WAY-FI board gives you total freedom. Divert your video door phone to your mobile, receive the call, answer and open the door if you want.

With Wi-Fi connectivity integrated in the monitor.

This entrance panel is used to replace the WAY-FI entrance panel that integrates the Fermax 1431 kit.

-
+

Street panel WAY-FI 1438 with 2 unpolarized wires with Wi-Fi connectivity from Fermax.

What technical characteristics does the 1438 plate have?

  • Dimensions (Height x Width x Depth): 94 x 162 x 34 mm (with visor)
  • Assembly: On the surface. Included rain shield required for mounting.
  • IP / IK degree: IP 44 / IK 07
  • Finishing material: Aluminum
  • Electric lock release: Yes (output 12 Vdc 250 mA, terminals S +, S-). Timer (1-8 s.)
  • Potential free relay for 2nd gate activation (garage): Yes. Configurable as Normally Open / Closed. Timer (1-8 s.)
  • Doorway exit pushbutton connection: Yes. Activates the electric door release (S +, S-) while pressing. Terminals PL, S +
  • Camera: CMOS, resolution 900 TVL. Wide angle (H = 120º, V = 72º). White LEDs (6) for camera lighting with activation by light sensor.
  • Card and push-button assembly: Removable card holder and call button, both with blue LED backlighting. Re-illumination activation by light sensor.
  • Possibility of additional plates: Yes (1 additional plate)
  • Possibility of additional analog cameras: Yes (1 per entrance panel)
  • Adjusting the speaker volume: Yes
  • Operating temperature: [-20ºC, + 55ºC]
  • Maximum electric door opener consumption: 250 mA in maintenance
More Information
EAN 8424299014388
Hight 0.200
Length 0.050
Width 0.110
System WAY-FI
SERIE WAY-FI
Color Silver
Type Entrance panel
Product Brand Fermax
