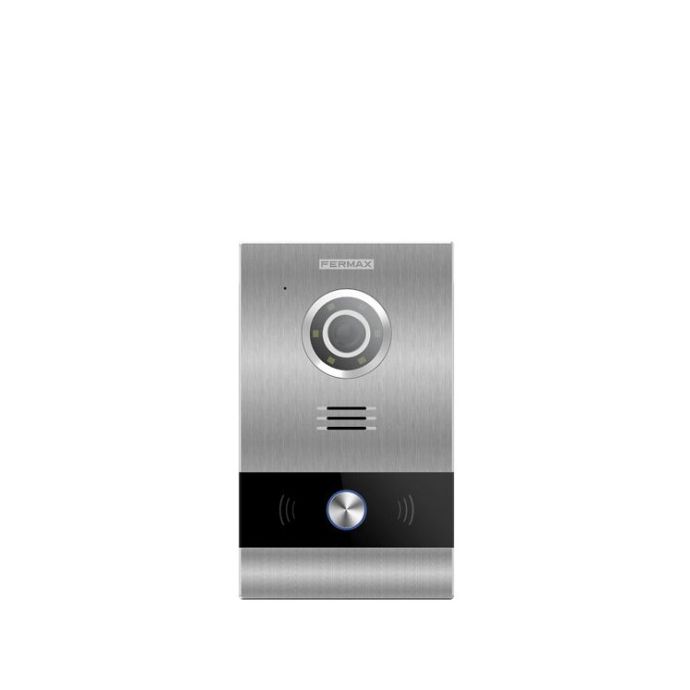

1-Line Milo Panel MEET by Fermax

Exterior plate Milo Video MEET of 1 line by Fermax with camera in high definition, call to associate apartment and to concierge.

What are the main characteristics of Fermax's Milo 9533 plate?

• Aluminum Profile
• High Resistance Tempered Glass
• High Definition Colour Camera
• Low Power Consumption
• Wide Range Working Environment
• Linux Modular Structure
• Access Control Integrated (Only for Panel with Reader)
• Available In 10 Languages
• Remote Firmware Update

What technical specifications does the Milo Video 9533 plate from Fermax have?

System:
• CPU: ARM Cortex-A7 1.2GHz
• FLASH: 128M
• SDRAM: 64M

Audio Features:
• G.711 protocol
• Audio level 17.7 dB

Camera:
• 1/3” CMOS Color
• 90o visual angle: Vertical 72º, Horizontal 54º
• 1.3 Mega Pixels
• Minimum illumination 0.5 LUX
• AWB

LED:
• White LED
• LM 60 mA Min. 24, Typ. 26
• View Angle 2θ1/2: 120

Power Consumption:
• On standby: 125mA
• Working: 250mA

Working voltage:
• 12 VDC

Connectivity:
• Ethernet RJ-45 Connector
• Exit button and door sensor connection
• NO, C, NC: Door lock release connection
• Built in web server for configuration and remote management

Working Environment:
• Temperature: -10 oC – 70 oC
• Humidity: 20 – 80% (Non-condensing)
• IP 54

Weight: 1,0446 kg

Size of product when packed: 8x25,5x16,5 cm

EAN 13: 8,4243E+12
