10P 100W Switch: 8 POE Ports and 2 Uplink Ports 10/100/1000 100m

SKU
VK-SWITCH-1008POE-120-G
Brands: Movok
€35.57 Tax included
Movok
Availability: In stock
24/48 Hours

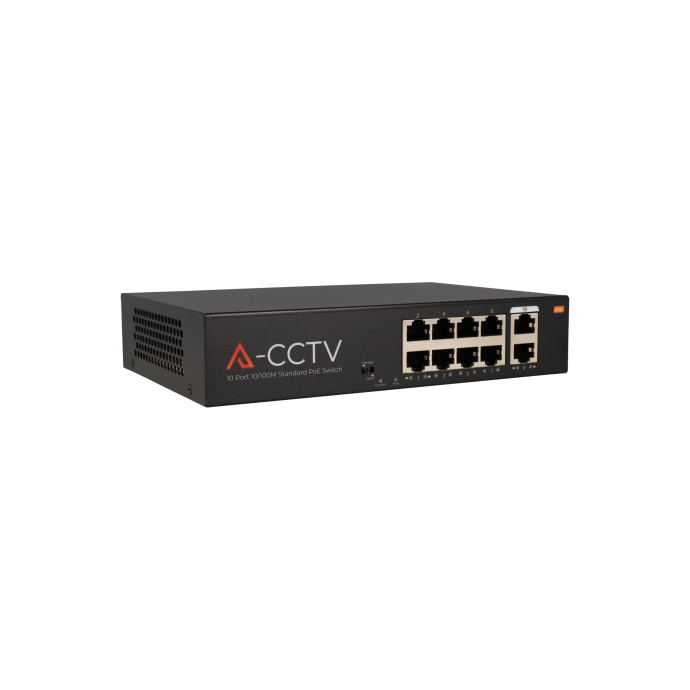

Switch 10 Ports with 8 PoE Ports 1008POE-120-G

Desktop switch with 10 ports, of which 8 are POE. What does this mean? That they will be able to power devices such as cameras, other switches, access points, etc. through those ports.

The device has 8 PoE ports and 2 Uplink RJ45 ports, each port providing a speed of 10/100/1000Mbps through the IEEE802.3af network standard.

It has a maximum consumption of 120W in the PoE ports, being 30W the maximum consumption per port.

It is very light and compact, made of black metal. It can be installed on the wall or can be placed on a desktop.

Technical Specifications of the Switch 10 Ports with 8 PoE Ports 1008POE-120-G




CHARACTERISTICS (SWITCH)

Supported data rate: 2 Gbps

Maximum transmission distance: 100 m

Buffer Memory: 768K

AMBIENT

Operating temperature: -20ºC ~ 55ºC

Degree of protection: IP30

Usage: Indoor

Maximum humidity: 90%

Lightning Protection: 4KV

ETHERNET PORTS

10 / 100 / 1000 Base-TX: 8

POE ports: 8

POE Ports Speed: 10 / 100 / 1000

Uplink ports: 2

Uplink port speed: 10 / 100 / 1000

Total number of ports : 10

SYSTEM (SWITCH)

MAC address table: 1K

MATERIAL AND DIMENSIONS

Material: Metal

Dimensions: 195 x 130 x 40mm

Net weight: 690g

Weight with packaging: 920 g

Installation: Desktop / wall

FOOD AND CONSUMPTION

Power mode: AC

Voltage: 100V ~ 240V

Amperage: 2000mA

Standby Consumption: 5W

Consumption On: 120W

Maximum consumption per port (PoE): 30W

Switch maximum consumption: 120W

More Information
EAN1000000000530
Hight0.100
Length0.220
Width0.200
REDES - SystemPOE
REDES - SERIE8 Ports
ColorBlack
Network EquipmentSwitch
Ports10
Data SpeedGigabit (10/100/1000Mbps)
PoEYes
Product BrandMovok
