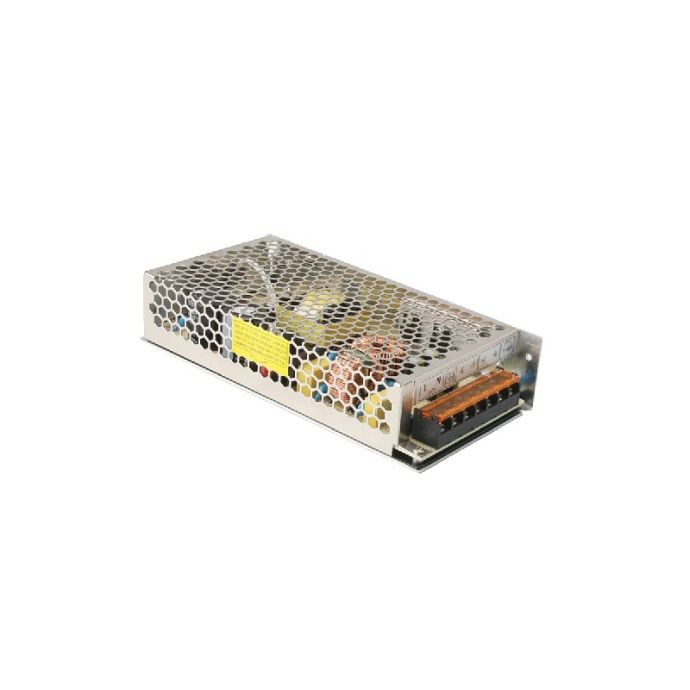

12 vdc and 15A power supply for CCTV

12V and 15A power supply for our CCTV cameras.

What technical specifications does the FA1512 source have?

• Switched AC / DC power supply.
• Precise voltage stabilization
• Enclosed case in grid for better heat dissipation.
• Its input is connected directly to the alternating current (AC 100 ~ 240 V) and provides continuous DC power 12 V / 15 A.
• It has two outputs.
• The voltage can be adjusted manually in a range that ranges from 11.5 V ~ 13.9 V.
• It has protection systems against short circuit, overvoltage and current peaks, to ensure a perfect operation of the installation

What technical specifications does the FA1512 source have?

• Input voltage AC 100 ~ 240 V
• Input frequency 47 ~ 63 Hz
• Output voltage DC 12 V (typical)
• Adjustable output voltage range 11.5 V ~ 13.9 V
• Output power 180W
• Output current 15 A
• Working temperature -20º C ~ + 55º C
• Dimensions 199 x 98 x 42 mm
• Weight 580 g
