2-Wire Simplebus Quadra and Icona Single Family Video Door Phone Kit

SKU
COM8461I
Brands: Comelit
€570.76 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

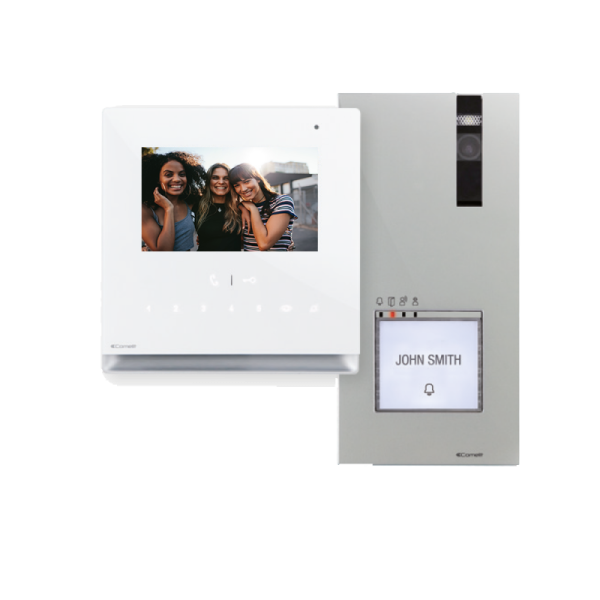

84611 Video Door Phone Kit with Quadra External Panel and 6601W Monitor

This is a Comelit kit for single-family or residential homes, with the SimpleBus 2-wire system. The Icona series monitor has a 4.3” color screen and hands-free audio. Easy to use thanks to its touch technology. The plate is from the Quadra series, with an aluminum front and a wide-angle camera. LED lighting.

It is composed of:

*1 External Plate Quadra 4893M
*1 Feeder 1209
*1 Icona 6610W Color Monitor
*1 Embedding Box 6117
*1 Surface Support 6620
*1 Derivation Terminal 1214/2C
*1 Termination Terminal 1216

-
+

Technical Specifications of the 84611 with Quadra External Panel and 6601W Monitor Video Door Phone Kit



GENERAL INFORMATION

Tipe

Monobloc

Height(mm)

195

Anchura (mm)

95

Depth (mm)

28

Product weight (g)

300

Product color

Gray RAL 9006, Black RAL9005

Wall mount

Yes



COMPATIBLE SYSTEMS

Simplebus 2 audio/video kit, power supply art. 1209

yes



AUDIO FEATURES

Microphone

6mm (Ø),Omnidirectional

Speaker

36mm (Ø), 8 Ohm, 1W



CAMERA FEATURES

Camera

colours

Sensor tipe

1/4" CMOS

Lens optical dimensions (mm)

2,1





SINGLE-FAMILY KIT WITH QUADRA AND ICONA. S2

CAMERA FEATURES

Vision angle (H x V - °)

85 x 72

Sensibility(lux)

0.1 (color)



ELECTRICAL CHARACTERISTICS

Power supply type

Power supply from the video intercom bus

Supply voltage

33VDC

Maximum absorption(W)

8,25



ELECTRICAL CHARACTERISTICS

Power supply type

Power supply from the video intercom bus

Supply voltage

33VDC

Maximum absorption (W)

8,25



HARDWARE FEATURES

Call type

Buttons

Button type

Mecanic

Number of buttons (n°)

4

backlight color

white

terminals

LL RTE COM DO SE- SE+C NC NO

Number of entries(n°)

2

Number of outputs (n°)

2

Type of outputs

Relay (C-NO-NC, 10A@12 ÷ 24 VAC/VDC), SE: pulse of
4A release, 200mA holding current for 12VAC/DC locks (18 Ohm maximum impedance)



SCREEN

Display size (")

4,3

Aspect ratio

16:9

Resolution (pixels)

480x272



GENERAL CHARACTERISTICS

Door opening

Yes

Automatic door opening on call (Doctor)

Yes

Silent mode (Privacy)

Yes

Auto start

Yes

Intercom calls

Yes

Input for call from the floor doorbell

Yes

Customizable ringer

Yes

Auto answer (hands free)

Yes

Send alarm calls

Yes

Actuator control

Yes

Open door sign

Yes

More Information
Hight 0.000
Length 0.000
Width 0.000
System Simplebus (2 threads)
SERIE Kit
Color Portero/Videoportero Color
Type Complete Kit
Product Brand Comelit
