2-wire Video Intercom Kit for 2 Homes with QUADRA panel and CHRONOS Hands-Free Monitor from Comelit

CR7461V 2-Wire Kit for 2 Dwellings with Quadra Board and Comelit Chronos Handsfree Monitor

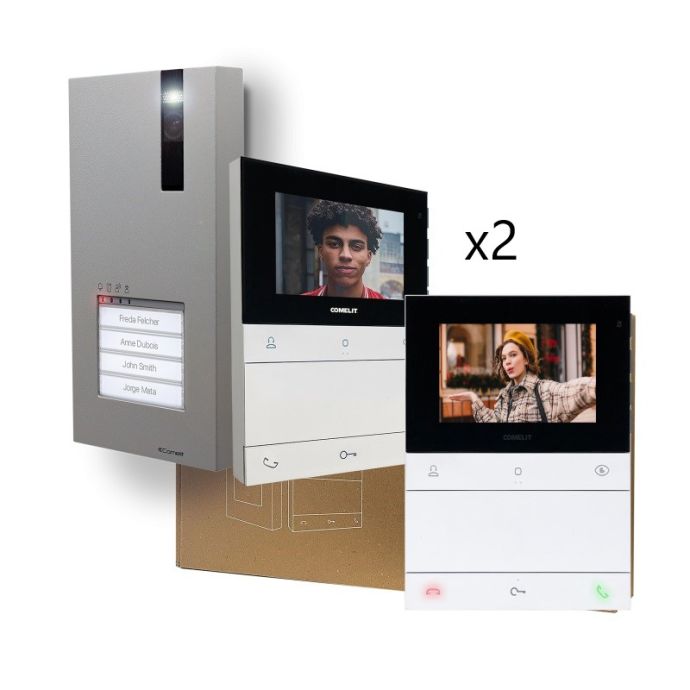

This Comelit kit is consisting of two 4.3" Chronos hands-free series, one outdoor panel of the Quadra series and two shunts.  It is suitable for use in residential, commercial and also in offices.

The Quadra series outdoor panel operates with singlebus 2 2-wire system (article 4893M). It is a surface plate. It has wide-angle camera and led for improved night lighting. The front of the plate is made of aluminum die-cast. Its keys are mechanical, being able to configure from 1 to 4 call keys by DIP-switch. It has 4 signaling LEDs for: call sent, door opener activated, installation occupied and audio active. It has dimensions: 95x195x28mm.

On the other hand, the monitor is from the Chronos series, has a 4.3" color display and is hands-free (item CR7721), compatible with Simplebus 2 technology. It incorporates NFC technology, which allows us to program it using the MyComelit app for free, without the need to connect it to the system and without power supply.It has 6 mechanical buttons, 3 are backlit and the other 3 are programmable. From the menu it is possible to adjust some functions such as volume, contrast, brightness, color, both for the general call and for the landing call. The central push button of each row has a marking to aid use by visually impaired persons. To facilitate installation, the monitor is supplied with a metal support plate for wall mounting and wire connection terminals. The bus shunt (1214/2C) for one tap or the one for 4 taps (1412) must be purchased separately as it is not included in the kit. It has dimensions of: 135x170x23mm.

This kit supports also includes the two 1214/2C required for monitors. Can be combined with monitors Chronos.
