25m SC / APC pre-connected FO double hose

SKU
TEL232614
Brands: Televes
€15.44 Tax included
Availability: In stock
24/48 Hours

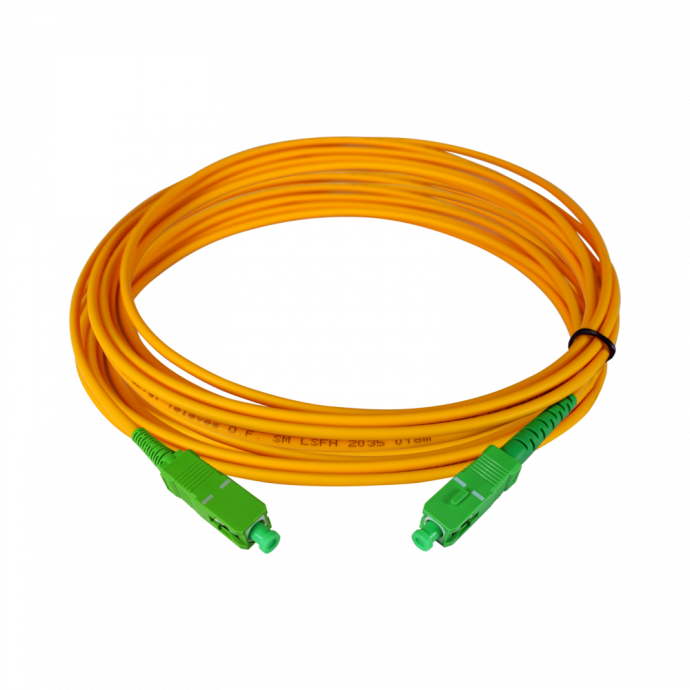

Double hose 232643 FO with 25m SC / APC connector

The FO 232643 hose allows connection of network elements via single-mode optical fiber. Since they are double hose, they are suitable for point-to-point networks where the same window is used for up and down traffic.

By having SC / APC connectors can also be used in Video Overlay headers with T0X devices.

This hose has blockers and fasteners to hold the fibers together, although they can also be used independently.

-
+

The 232643 fiber optic hose provides a low level of attenuation and high reliability.

What technical characteristics does the hose 232643 have?

  • Connectors mechanically phase-shifted at one end to facilitate passage through pipelines.
  • They have blockers and fasteners to hold the fibers together.
  • Fiber identifiers are included.
  • Made with ITU-T G.657A2 LSFH fiber, they provide low levels of attenuation and high reliability.

What technical specifications does the hose 232643 have?

 Fibra  Tipo Monomodo ITU-T G.657A2
 Conectores ópticos  Tipo SC/APC
 Cubierta  Tipo LSFH
 Tensión máxima en instalación por fibra  N 1000
 Tensión máxima permanente por fibra  N 500
 Temperatura de funcionamiento  ºC -20 ... +70
 Atenuación máxima  dB 0,8 (1310, 1490, 1550 nm), incluyendo conectores
 Pérdidas de inserción dB < 0,5 (por  bra)
 Pérdidas de retorno dB > 60 (por  bra)
 Radio mínimo de curvatura  mm 15
 Diámetro exterior mm 3
More Information
EAN 8424450222928
Hight 0.200
Length 0.049
Width 0.210
System DTT Optic Fiber
Serie 25m
Fiber type Singlemode
Entorno Interior
Color Orange
Product Brand Televes
