Switch 24 Ports 1 Gb POE and 2 Uplink 250W from A-CCTV

SKU
A-SWITCH-2624POE-250-G
Brands: A-CCTV
€181.26 Tax included
Availability: On request
1 to 7 days

Switch 26 Ports with 24 PoE Ports 2624-250

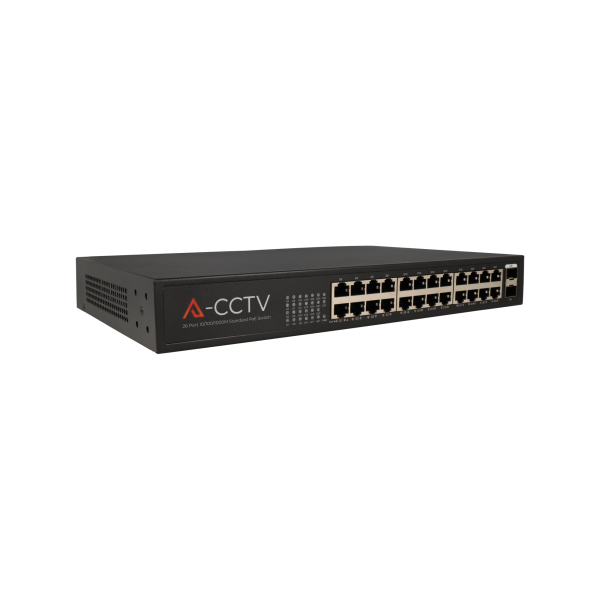

Desktop switch with 26 ports, of which 24 are POE. What does this mean? That they will be able to power devices such as cameras, other switches, access points, etc. through those ports.

The device has 24 PoE ports and 2 Uplink RJ45 ports, each port providing a speed of 10/100/1000Mbps through the IEEE802.3af network standard.

It has a maximum consumption of 250W in the PoE ports, being 30W the maximum consumption per port.

It is very light and compact, made of black metal. It can be installed on the wall or can be placed on a desktop.

-
+

Technical Specifications of the Switch 26 Ports with 24 PoE Ports 2624-250




CHARACTERISTICS (SWITCH)

Supported data rate: 52 Gbps

Buffer Memory: 4Mbps

AMBIENT

Operating temperature: -20ºC ~ 55ºC

Degree of protection: IP30

Usage: Indoor

Maximum humidity: 90%

Lightning Protection: 4KV

ETHERNET PORTS

10 / 100 Base-TX: 24

POE ports: 24

POE Ports Speed: 10 / 100 / 100

Uplink port speed: 10 / 100 /1000

Total number of ports : 24

SYSTEM (SWITCH)

MAC address table: 8K

MATERIAL AND DIMENSIONS

Material: Metal

Dimensions: 330 x 204 x 44mm

Net weight: 3000g

Weight with packaging: 3500 g

Installation: Desktop / Rack

FOOD AND CONSUMPTION

Power mode: AC

Voltage: 100V ~ 240V

Amperage: 4100mA

Standby Consumption: 20W

Consumption On: 250W

Maximum consumption per port (PoE): 30W

Switch maximum consumption: 250W

More Information
Hight 0.000
Length 0.000
Width 0.000
RED - System POE
RED - SERIE 24 Ports
Color Black
Network Equipment Switch
Ports 26
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand A-CCTV
