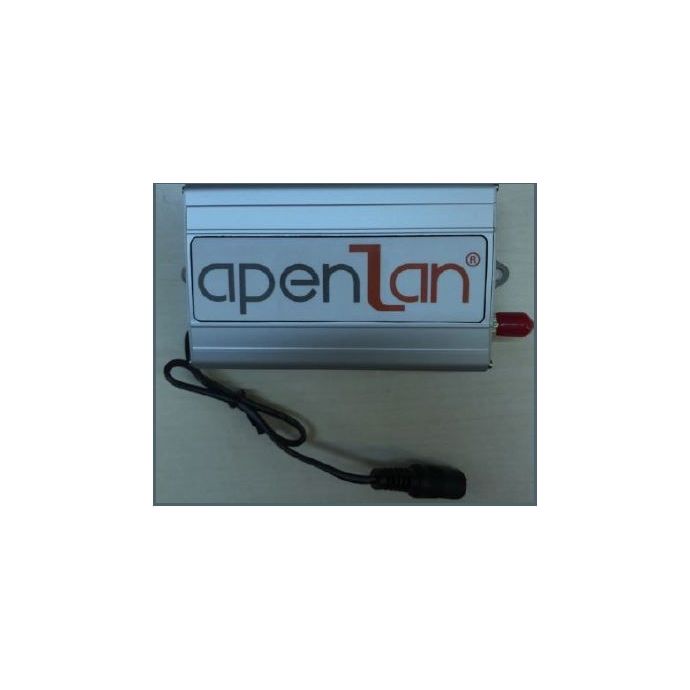

2G/3G/4G Module for SIM 5 Bands with Battery for Door Opening

SKU
APLSS4G
Brands: Apenlan
€287.39 Tax included
Free shipping
(Iberian Peninsula)
Apenlan
Availability: On request
1 to 7 days

Technical Specifications of the 2G/3G/4G Module for Door Opening by SIM

This GSM module is used to remotely manage the opening of automatic doors, barriers or other central heating systems, home, etc.

Its configuration is very simple, it consists of programming through SMS commands. Allows you to store up to 1000 phone numbers in its memory. In this way we can open the doors by making a missed call. The door can also be opened by password with 4-digit access code in case the number is not stored in memory.

Technical Specifications of the 2G/3G/4G Module for Door Opening by SIM



Voltage 12~24 V AC/DC
operating current 250mA maximum, 55mA typical
GSM/WCDMA module Cinterion/Simcom
GSM/WCDMA frequency GSM 850/900/1800/1900 Mhz, WCDMA 850/1900 o 900/2100 Mhz, LTE FDD: B1/B3/B7/B8/B20B28A
power consumption Standby: 42mA/hr / Activating the relay: 83mA/hr
Measures 9.5 (L) X 6.0 (W) x 2.5 (H) cm
Antenna short GSM antenna
RH Less than 80% RH
Operating temperature -20℃ a 50℃
More Information
EAN1000000000594
Hight0.260
Length0.090
Width0.190
ACCESOS - SISTEMAAccessories
ACCESOS - SERIEAccessories
ColorSilver
Product BrandApenlan
Write Your Own Review
You're reviewing:2G/3G/4G Module for SIM 5 Bands with Battery for Door Opening
Your Rating
File Label Size Download
pdf Ficha Técnica Módulo 2G/3G/4G para SIM 5 Bandas con Batería para Apertura Puerta 151.7 KB Download
