3 Button Switch Relay A-SMARTHOME

SKU
A-TS86-3L
Brands: SMARTHOME
€22.02 Tax included
Availability: On request
1 to 7 days

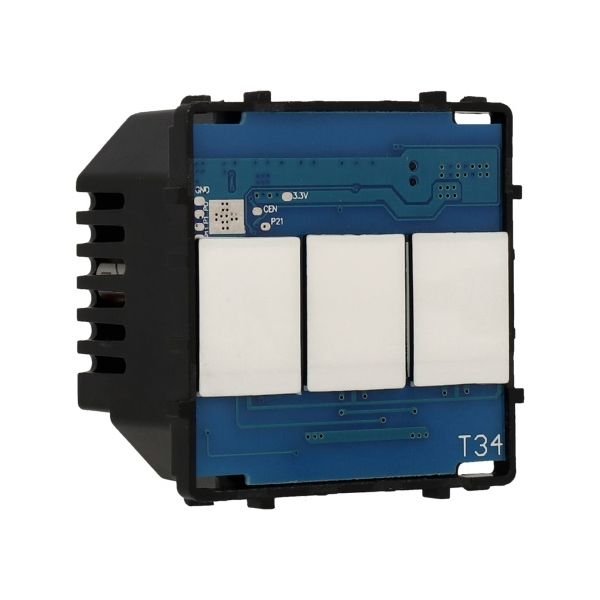

3-Button Switch Relay A-SMARTHOME

This is a relay to control the home automation in your switches. This relay is controlled through the SMARTHOME App.

The A-TS86-3L is installed together with other devices such as the 2-Button switch panels A-LST47-3L-Wand A-LST47-3L-B.

This A-SMARTHOME relay is prepared for mobile phone control. You can control the devices via the WiFi wireless network of the installation (only 2.4GHz networks are compatible). Then, you only have to add them to the Smart Life mobile app in a very simple way.

To configure the Smart Life App just follow these steps:

  1. We connect the mobile to the same WiFi as the connected devices.
  2. Open the Smart Life app
  3. Press and hold any touch button on the switch until it starts flashing red, which means that the connection has been initiated.
  4. From the App, click on "Add" to add the device. It is recommended to change the name of the device to identify it correctly.
  5. You will be asked for the WiFi password, enter it.
  6. The pairing procedure will start and when it is finished it will be shown as added.

Repeat the operation for all devices.

Switched switches allow the same light to be switched on from two or more different pushbuttons, so in these cases, they must be installed according to conventional wiring instructions.

-
+

Technical Specifications 3-Button Switch Relay A-SMARTHOME

Specifications and Features

SPECIFICATIONS (SWITCHES)

Backlighting: Yes

Capacitor: Yes

Electrical connection: Only with phase wire

Scenario manageable: Yes

Touch panel: Yes

Status recovery after power failure: Yes

Switched function: Configurable via the app

Life cycle: 100000 cycles

ENVIRONMENT

Operating temperature: -20 ºC ~ 70 ºC

Use: Indoor

Maximum humidity: 93%.

WI-FI

Wi-Fi Standard:IEEE802.11 b / g / n

Frequency range: 2.4 GHz

Mobile application: Smart Life

FOOD AND CONSUMPTION

Power mode: AC

Voltage: 160V ~ 240V.

Standby Power Consumption: 0.02W

Power consumption: 10A

MATERIAL AND DIMENSIONS

Dimensions: 50 x 50 x 30 mm

Net weight: 60 g

Weight with packaging: 80 g

More Information
Hight 0.000
Length 0.000
Width 0.000
System WiFi
SERIE Actuators
Automation Relay
Product Brand SMARTHOME
