3-input 30dB mast amplifier with FI mix

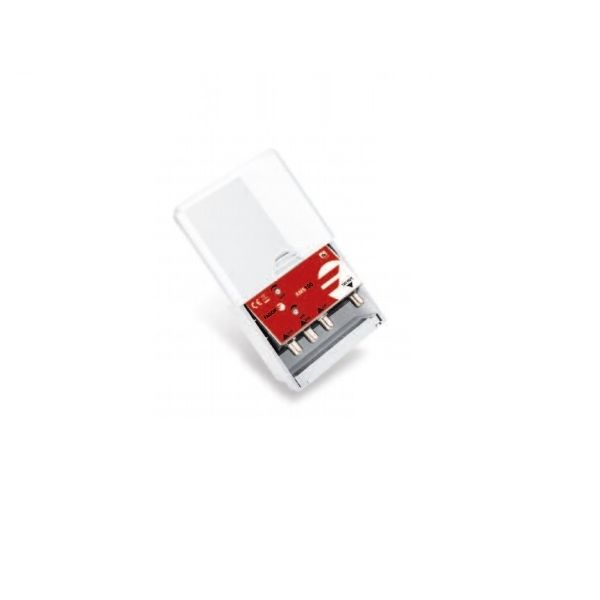

Name: 3-input 30dB mast amplifier with FI mix
Brand: Fagor
SKU: FAG36645
Price: 21.72 EUR
Availability: InStock

SKU

FAG36645

Brands: Fagor

€21.72 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

Mast amplifier with satellite mix

Do you need to mix your terrestrial signal and satellite? With this mast amplifier you can mix your signal as well as amplify the signal received by the DTT antenna.

The AMS 130 mast amplifier has 3 inputs (VHF, UHF and FImix) and a single output, through which the amplified terrestrial signal will be output and mixed with the satellite signal.

This mast amplifier maintains optimized signal quality on each antenna.

Details

The AMS 100 mast amplifier allows the amplification of the DTT signal in addition to mixing with the FI signal.

What technical characteristics does the 36645 amplifier have?

Terrestrial inputs of VHF and UHF.
Input for satellite mix.
Gain regulation independent of the noise figure.
Type F connectors
It allows to work with a wide range of input levels.
It maintains the optimized signal quality in each antenna.

What technical specifications does the 36645 amplifier have?

Number of entries: 3
Bands
VHF: 47 - 230
UHF: 470 - 790
FI: 950 - 2150
Gain
VHF: 24 dB
UHF: 33 dB
FI: -2 dB
Gain regulation
VHF: 20 dB
UHF: 20 dB
Output level 110 dBμV
Input / output impedance: 75 Ω
Test output -30 dB
Consumption 85 mA
Dimensions 115 x 65 x 100 mm

More Information

More Information
EAN	8432589366451
Hight	0.120
Length	0.070
Width	0.100
DTT System	Amplificador TDT y SAT
MANUFACTURER SERIES DTT	F-connector
Color	White
Type	Mast amplifier
Entorno	Exterior
# Inputs	3
Outputs	1
Gain	33
Max. output level Ganancia (dB/uV)	110
LTE compatible	No
Current bypass	Satellite, Terrestrial
Product Brand	Fagor
