3MP EXIR Turret Camera 2.8-12mm optic for 40m range

Name: 3MP EXIR Turret Camera 2.8-12mm optic for 40m range
Brand: Hikvision
SKU: H343277023
Price: 166.01 EUR
Availability: InStock

SKU

H343277023

Brands: Hikvision

€166.01 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

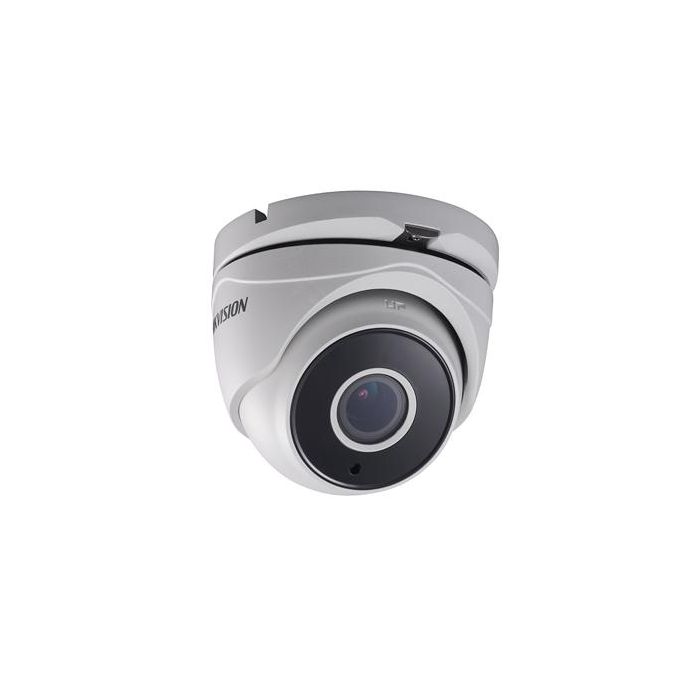

3MP Turret camera with 2.8-12mm optics for a range of 40m.

The Turret 343277023 camera has a resolution of 3MP, varifocal optics of 2.8-12 mm and EXIR, which makes it perfect for recording images in low light. This camera is for indoor and outdoor use.

This camera is hybrid since it supports HD-TVI, standard of hikvision, HD-CVI digital system of the brand Dahua, AHD digital system of Nextchip Chinay, CVBS that is the standard of all the analog cameras of the market.

This camera is used exclusively with the recorders H343477020, H343477021 y H343477022.

Details

The Turret Camera H343277023 is a 3MP camera with a range of 40m.

What technical features does the H343277023 camera have?

3 megapixel high performance CMOS
High definition analog output, up to 3 megapixel resolution
2.8-12mm motorized varifocal lens
Day Night
OSD menu, DNR, intelligent IR
True WDR, up to 120dB
Exir technology, up to 40 meters away IR
Weatherproof IP66

What is the technical specifications of the H343277023 camera?

Camera
Image Sensor:	\|	3MP CMOS Image Sensor
Signal System:	\|	PAL/NTSC
Effective Pixels:	\|	2052(H)*1536(V)
Min. Illumination:	\|	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	Motorized VF lens; 2.8 - 12 mm angel of view: 26.8°-83°
Lens Mount:	\|	φ14
Adjustment Range:	\|	Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day& Night:	\|	IR cut filter with auto switch
Wide Dynamic Range:	\|	120dB
Video Frame Rate:	\|	1920 ×1536@18fps
HD Video Output:	\|	1 Analog HD output
Synchronization:	\|	Internal Synchronization
S/N Ratio:	\|	More than 62 dB
Up the Coax:	\|	Support
Menu
Auto White Balance:	\|	Auto/MWB
BLC:	\|	Support
AGC:	\|	Support
Language:	\|	English/Chinese
Function:	\|	Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR
General
Operating Conditions:	\|	-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 VDC±15%
Power Consumption:	\|	Max. 6W
Weather Proof:	\|	IP66
IR Range:	\|	Up to 40m
Communication :	\|	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	\|	134.3mm×123.9mm×111.4mm (5.29”×4.88”×4.39”)
Weight:	\|	Approx. 750g (1.57lb)

More Information

More Information
EAN	6954273631406
Hight	0.000
Length	0.000
Width	0.000
System	Hibrid
SERIE	Turret
Technology	AHD, Analogic CVBS, HD-CVI, HD-TVI
Color	White
Tipe	Turret
Entorno	Exterior
Resolution	3MP
Optics	Varifocal
Product Brand	Hikvision
