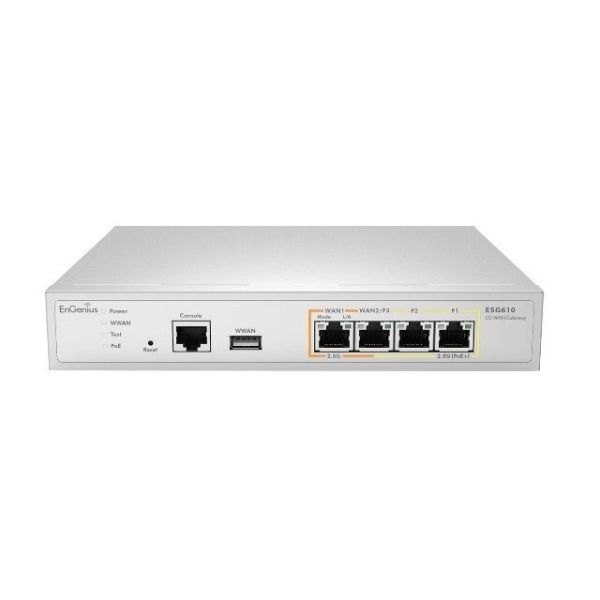

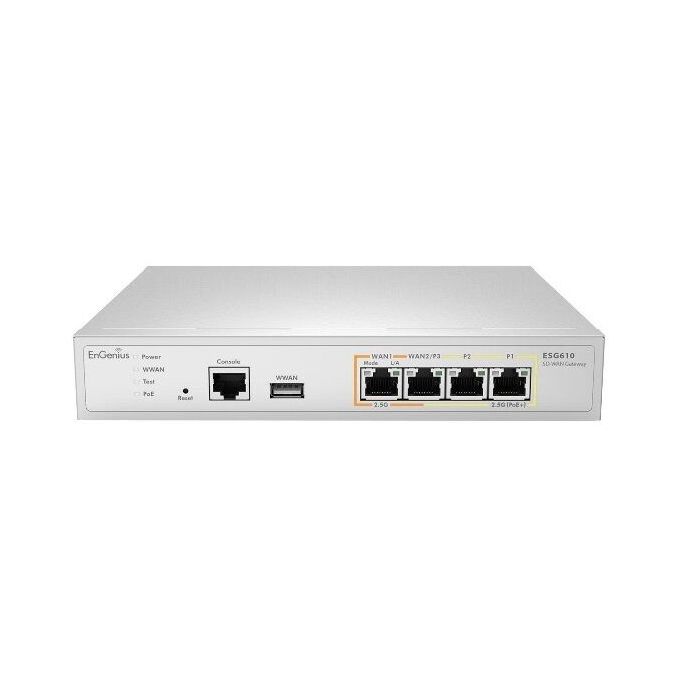

4-port 2.5 Gigabit router, VPN server, 2 Wan, USB4G/5G, 8GB of memory and 8GB of storage

Technical Specifications

CPU Processor

Four cores

Operating frequency

2.2 GHz

Memory

8 GB

Storage

8GB

Copper Ports

4x2.5G

Console Port

1 x RJ-45

PoE Ports

1

PoE Standard

802.3af/at

Mounting method

Wall mount

USB interface

1 USB 3.0

Management functions

Firewall (SPI performance)

9.5G

VPN throughput

1.7G

Max. concurrent TCP sessions

1,500,000

Max. concurrent VPN tunnels

500

Max. concurrent VPN users

500

Max. VLANs

256

Firewall features

Stateful packet inspection policy rules

Port forwarding

1:1 NAT

Allow inbound services

Site-to-site VPN

Mesh/hub-and-spoke VPNs

Encryption

DES, 3DES, AES (256 bits)

Authentication

MD5, SHA1, SHA2 (512 bits)

Key management

IKEv1 (x-auth, mode-config)

IKEv2 (EAP, configuration payload)

VPN functions

Site-to-site VPN

VPN client

Policy-based VPN

IPSec NAT traversal (NAT-T)

Dead Peer Detection (DPD)

Automatic VPN connection

Automatic NAT traversal

Mode of operation

Routing/Passthrough

Multiple WANs

Dual

Bandwidth limit

Per client/Per interface

Traffic Load Balancing

WAN load balancing with WRR

Network functions

Static route

Multiple WAN Multiple WANs USB PPPoE Cellular user authentication

VLAN tagging Captive portal Custom home page Dynamic routing Dynamic client/server/DHCP relay Dynamic DNS support

Environmental and Physical

Power

54V/1.2A

Max. power consumption

52W

Operating temperature

0°C to 40°C

Humidity (non-condensing)

5 to 95% non-condensing

Dimensions

210 x 179.5 x 35 mm

Weight

0.97 kg

Package Contents

Power adapter

Power cable

RJ-45 console cable

Wall mounting kit

Quick installation guide

Regulatory Compliance

FCC Part 15 (Class B)

IC

CE EMC (Class B)

RCM

BSMI

Warranty

2 years
