40m SC / APC Pre-Connected FO Double Hose

SKU
TEL232616
Brands: Televes
€20.58 Tax included
Availability: On request
1 to 7 days

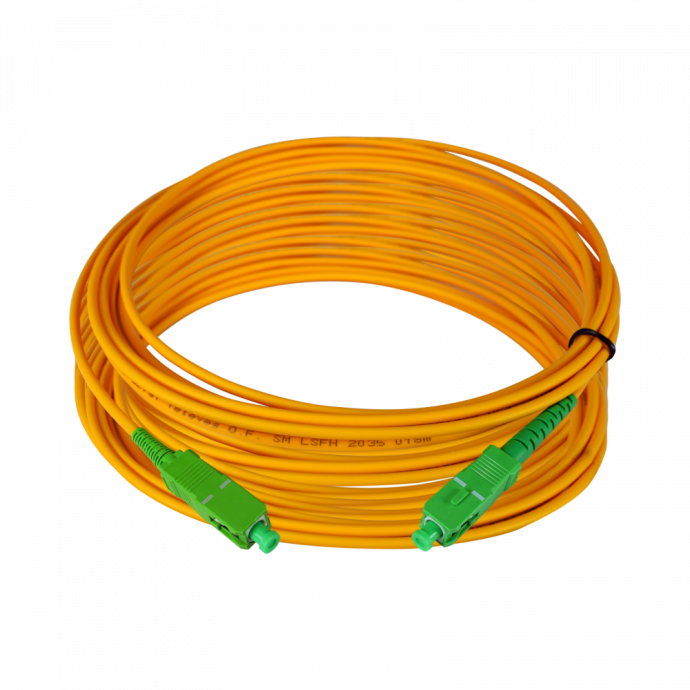

Double hose 232645 FO with 40m SC / APC connector

The FO 232645 hose allows the connection of network elements via single-mode optical fiber. Since they are double hose, they are suitable for point-to-point networks where the same window is used for up and down traffic.

By having SC / APC connectors can also be used in Video Overlay headers with T0X devices.

This hose has blockers and fasteners to hold the fibers together, although they can also be used independently.

-
+

The 232645 fiber optic hose provides a low level of attenuation and high reliability.

What technical characteristics does the 232645 hose have?

  • Connectors mechanically phase-shifted at one end to facilitate passage through pipelines.
  • They have blockers and fasteners to hold the fibers together.
  • Fiber identifiers are included.
  • Made with ITU-T G.657A2 LSFH fiber, they provide low levels of attenuation and high reliability.

What technical specifications does the hose 232645 have?

 Fibra  Tipo Monomodo ITU-T G.657A2
 Conectores ópticos  Tipo SC/APC
 Cubierta  Tipo LSFH
 Tensión máxima en instalación por fibra  N 1000
 Tensión máxima permanente por fibra  N 500
 Temperatura de funcionamiento  ºC -20 ... +70
 Atenuación máxima  dB 0,8 (1310, 1490, 1550 nm), incluyendo conectores
 Pérdidas de inserción dB < 0,5 (por  bra)
 Pérdidas de retorno dB > 60 (por  bra)
 Radio mínimo de curvatura  mm 15
 Diámetro exterior mm 3
More Information
EAN 8424450222935
Hight 0.270
Length 0.060
Width 0.230
System DTT Optic Fiber
Serie 40m
Fiber type Singlemode
Entorno Interior
Color Orange
Product Brand Televes
