4G Industrial Router Milesight UR35-LO4EU-P

SKU

MSUR35LO4EUP

Brands: Milesight

Availability: On request

Delivery: 1 to 7 days

€318.53 Tax included

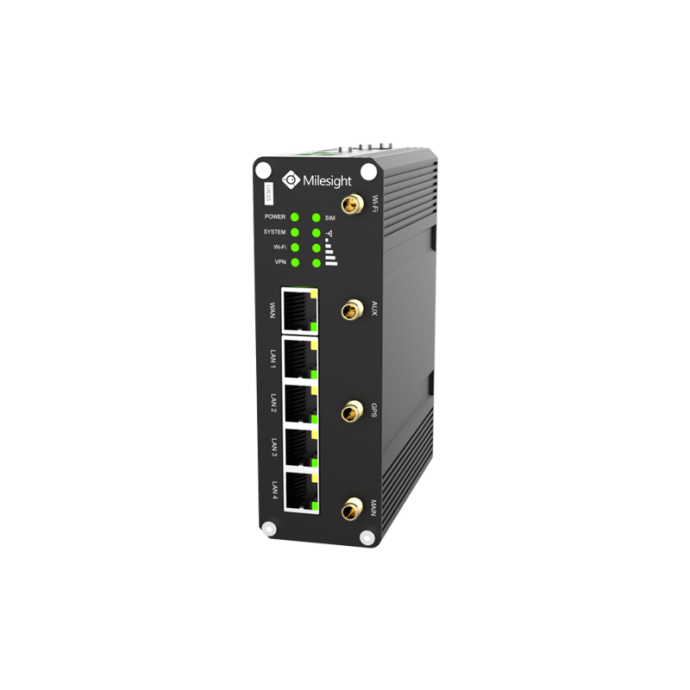

Milesight UR35-LO4EU-P 4G Industrial Router

Router designed in a compact way to accompany you on your trips, since you can comfortably store it even in a pocket. Efficiency and low cost are its main characteristics.

It has 5 RJ45 10/100 Ethernet ports and 4 PoE ports. It also incorporates an LTE 4G CAT4 modem, supporting dual sim backup, providing reliable and robust communication.

You can install it on the wall, on a DIN rail or on a desktop. Prepared for dual 4G/3G SIM card slot.

Its wide operating temperature range (-40°C to +70°C) makes it perfectly suited for most M2M applications in harsh environments.

Box contents:

Industrial 4GPoE Router
Instructions for use
48V DC power supply
LTE antennas

Details

Technical Specifications of the Milesight UR35-LO4EU-P 4G Industrial Router

Marca	Milesight
Dispositivo	Router Industrial 4G PoE
WiFi	IEEE 802.11 b/g/n 2.4 GHz Access Point
Ethernet	5 puertos Ethernet RJ45 10/100 Mbps
PoE	Puertos 1~4 IEEE 802.3af/at PoE
SIM	2 ranuras para tarjetas microSIM 4G / 3G (no incluidas)
Frecuencias LTE	Bandas 1/3/5/7/8/20/38/40/41
Conectores antena	LTE (antena incluida)
CPU	528 MHZ, 32-bit ARM Cortex-A7
RAM	128 MB DDR3
Flash	128 MB
Protocolos de red	PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
Puertos	I/O, serie RS232 y RS485
Alimentación	DC 9~48V (alimentador 48V requerido para PoE incluido)
Material	Metal
Temp. funcionamiento	-40º C ~ +70º C (funciones LTE reducidas > 60º C)
Humedad funcionamiento	0 ~ 95 % (no condensante) a 25º C
Instalación	Carril DIN, pared o sobremesa
Dimensiones	26 (Al) x 108 (An) × 90 (Fo) mm
Peso	271 g
