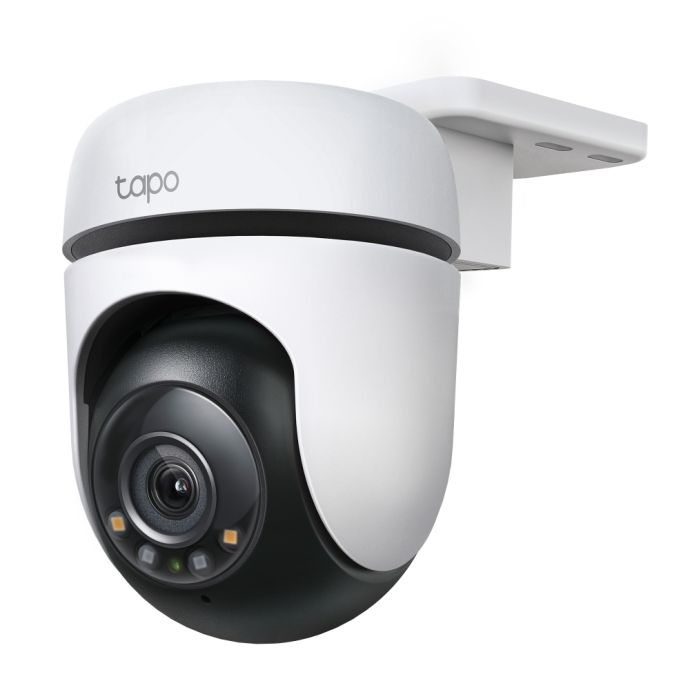

4MP PTZ Camera with 30 Meter Fixed Lens C520WS

Name: 4MP PTZ Camera with 30 Meter Fixed Lens C520WS
Brand: Tplink
SKU: TL-TAPOC520WS
Price: 79.21 EUR
Availability: InStock

SKU

TL-TAPOC520WS

Brands: Tplink

€79.21 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

4Mpx PTZ Camera with 30 meter Fixed Lens C510W

The TAPO C520WS camera is an excellent camera that has a resolution of 4Mpx(2560x1440px), providing better resolution than most cameras capturing more details. Now your videos and photos will look sharper and more detailed.

It provides a 360° horizontaland 130° vertical viewing range, so it captures everything around you. In addition, thanks to intelligent motion tracking, it is able to follow the movement of any action with high-speed rotation. It also allows excellent full color night vision thanks to its large aperture F1.6 lens up to 30m infrared. With the starlight sensor the camera records more vibrant colors in very low light.

We can save the recorded video in the cloud or locally on a micro SD card (up to 512Gb not included). The camera is ready to be installed outdoors, as it is waterproof and dustproof, with an IP66 protection rating.

High level of security thanks to multiple detection for Free-Smart AI, which identifies a person and notifies us. This camera has wireless connectivity, now you decide whether to connect it by WiFi or ethernet cable. It can be easily mounted on the ceiling.

Details

Technical Specifications of the 4MP PTZ Camera with 30-meter Fixed Lens C520WS

Camera
Image Sensor	1/3‘’ CMOS
Glasses	F/NO: 1.61±10%; Focal length: 3.18mm±5%.
Motion Range	Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 60° (130° Tilt Coverage)
Night vision	850nm IR LED (up to 98ft), Starlight Color Night Vision
Lighting	2× Built-in Spotlights
Interface & Button	1× Ethernet Port 1× RESET Button 1× MicroSD Card Slot (Up to 512GB)
Weather resistant rating	IP66
Display range	360° horizontal y 130° vertical
Resolution	2K QHD 4MP (2560 × 1440 px)

VIDEO & AUDIO
Maximum Resolution	2K QHD 4MP (2560 × 1440 px)
Frame Rate	15/20/25/30 fps (Default 15 fps)
Digital Zoom	12x
Video Compression	H.264
Live View	Yes
Image Enhancement	3DNR WDR
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Siren Volume	93 dB (Level measured at 4-inch/10-cm distance)

STORAGE
Local Storage	MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards >
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)

VIDEO
Frame per second	Up to 25/30 fps
Live streamed video	2K QHD
Video compression	H.264

DETECTION and NOTIFICATIONS
AI Detection	Motion Detection Person Detection Pet Detection Vehicle Detection Line-Crossing Detection Tamper Detection
Activity Zones	Yes
Output Notification	System Notification System Notification with Snapshot (Tapo Care Services)

AUDIO
Audio Communication	Bidirectional
Audio input and output:	Built-in microphone and speaker

Red
Network Connectivity	Connect via Wi-Fi or Ethernet
Wireless Connectivity	IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol	TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
Ethernet Port	1× 10/100 Mbps RJ45 Port on Camera
Wireless Security	WPA/WPA2-PSK
RTSP	Yes
ONVIF	Yes
Standards and Protocols	IEEE 802.11b/g/n
Security	128-bit AES encryption with SSL/TLS
Frequency	2.4GHz

SECURITY
Security	On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK

ENERGY
Power Source	9V DC Power Adapter
Input Voltage	100-240 V, 50/60 Hz
Output Voltage	9 V, 0.85 A (DC Power)

ACTIVITY NOTIFICATIONS
Entry Notification	Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line Crossing Detection
Exit Notice	Instantanea (Tapo Care), Clips (Tapo Care)

HARDWARE
Button	RESET button
Indicator LED	System LED
Adapter input	100-240V, 50/60Hz
Adapter output	9V, 0.85A (DC Power)
Product Dimensions (W x D x H)	4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)

GENERAL
Smart Integration	Google Assistant, Amazon Alexa
Weather Resistance	IP66
System Requirements	Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options	Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included)
Operating temperature	-30℃~60℃
Storage Temperature	-40℃~60℃
Operating humidity	10%~90% RH, Non-condensing
Storage Humidity	0~90% RH, Non-condensing
Dimensions	4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
Package Contents	Tapo C520WS Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Waterproof Cable Attachments Quick Start Guide
Certifications	CE, FCC, RoHS, RCM

ENVIRONMENT
Operating temperature	-30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F)
Storage temperature	-40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F)
Operating humidity	10%~90% RH, non-condensing
Storage humidity	0~90% RH, non-condensing

Others
Certifications	CE, FCC, RoHS, RCM
Package Contents	Tapo C520WS Camera Power Adapter (3.0m) Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Gasket Waterproof Cable Ties Quick Start Guide

More Information

More Information
EAN	4895252501599
Hight	0.180
Length	0.230
Width	0.100
SECURITY - SYSTEM	WiFi
SEGURIDAD - SERIE	Tapo
Technology	IP
Color	White
Tipe	PTZ
Entorno	Exterior
Resolution	4MP ~ 2K
Optics	Fixed
Product Brand	Tplink
