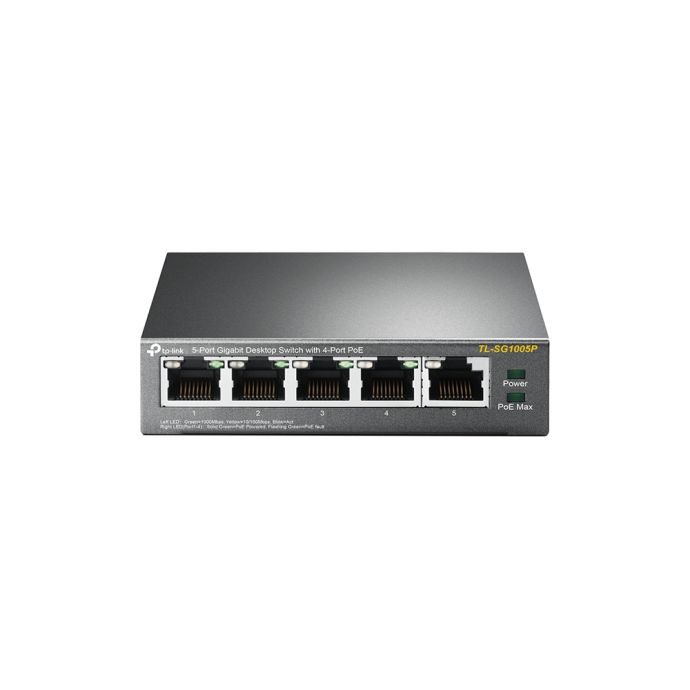

5-port switch with 4 Gigabit POE TL-SG1005P from TP-LINK
Availability:
In stock
Delivery:
24/48 Hours
Switch with 4 POE ports of TP-LINK
The TP-Link TL-SG1005P switch is a 5-port 10/100 / 1000Mbps unmanaged switch, which does not require any configuration and provides 4 PoE (Power over Ethernet) ports.
This switch can automatically detect and supply power to those Devices Powered under standard IEEE 802.3af. In this case, the electrical energy is transmitted at the same time as the data by a single cable allowing the expansion of your network to areas without electrical plugs or cables, where you can install devices such as Access Points, IP Cameras or IP Phones, etc.
The TL-SG1005P is easy to install and use. It does not require any type of configuration or installation.
What technical characteristics does the TL-SG1005P switch have?
5 RJ45 ports 10/100 / 1000Mbps
With 4 PoE ports, electrical power and data are transmitted on a single cable
Compatible with devices under standard IEEE 802.3af, allows the expansion of a home or office network
QoS 802.1p / DSCP enables biased traffic selection to ensure low latency
Supports PoE up to 15.4W per port
Supports 56W total PoE for all ports
No configuration or installation required
What technical specifications does the TL-SG1005P switch have?
HARDWARE FEATURES
Interface
5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45)
Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 56W
Backbound Bandwidth
10Gbps
Mac Address Table
2K
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Max Power Consumption
3.95W(220/50Hz. no PD connected) 64.44W(220/50Hz. with 56W PD connected)
Max Heat Dissipation
13.48BTU/h(no PD connected) 219.87BTU/h(with 56W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
Transfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG1005P, Power Adapter, Installation Guide
Consumption
4.26 watts (max. no PD connected) 63.31 watts (max. with 56w PD connected)
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
More Information
EAN
6935364083212
Hight
0.130
Length
0.120
Width
0.200
RED - System
POE
RED - SERIE
5 Ports
Color
Black
Network Equipment
Switch
Ports
5
Data Speed
Gigabit (10/100/1000Mbps)
PoE
Yes
Product Brand
Tplink
