main product photo

500m coil UTP Cat.6 Cable Dca LSFH Televes DK6000

SKU
TEL212305C
Brands: Televes
€302.20 Tax included
Free shipping
(Iberian Peninsula)
13% Discount for professionals
Televes
Availability: In stock
24/48 Hours
Be the first to review this product

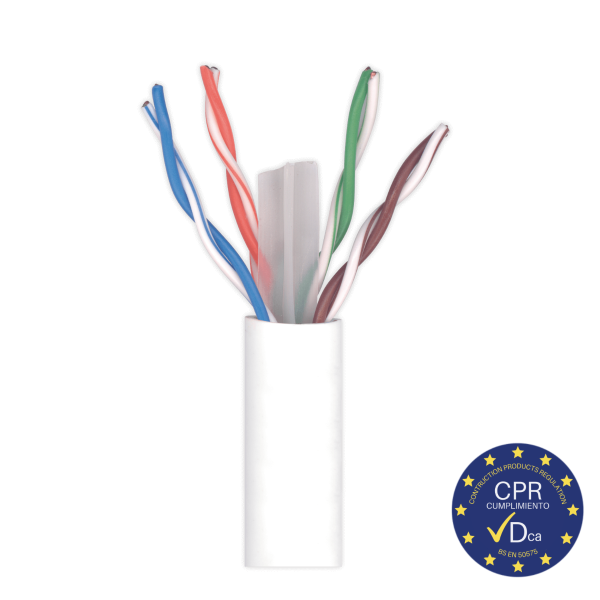

UTP Cat.6 Cable LSFH DK6000 Televes 212305

DK6000 UTP Category 6 and Euroclass Dca data cable, with rigid Copper (Cu) conductor and PE white Halogen Free (LSFH) indoor jacket. Supplied in a 500 meter wooden coil.

This Cat.6 cable complies with the standard for Gigabit Ethernet cables. An evolution over the 5e category, which allows frequencies of up to 250MHz to be reached in each pair and a transfer speed of 1Gbps. Cable designed for 10 Base-T, 100 Base-T and 1000 Base-T installations. With characteristics to avoid crosstalk.

-
+

Buy it with one of these to complete your order

  1. Cu/Al coaxial cable with gray PVC sheath in 250m coil 212811 cable
    Dca Coaxial cable with live copper and aluminum mesh with gray PVC cover in 250m coil
    €128.26 Tax included
  2. Desktop Switch Gigabit 8 ports Mervusys MS108G
    Desktop Switch 8 ports 10/100/1000Mbps Mercusys
    €18.33 Tax included
  3. RTR 600x500x80mm Horizontal Televes 546702
    Horizontal Terminal Enclousure 600x500x80mm
    €58.08 Tax included
  4. RJ45 UTP Cat6 Female Self-crimping Connector
    RJ45 UTP Cat6 Female Self-crimping Connector
    €1.45 Tax included
  5. Conector RJ45 Hembra tipo Palomilla para Cable de Datos
    Televes RJ45 UTP CAT6 Self-crimping Female Connector (Finger Type)
    €2.67 Tax included

DK6000 data cable for Televes type UTP Category 6 and Euroclass Dca LSFH, for 1000 Base-T (Gigabit Ethernet) applications.

What are the main characteristics of the Televes 212305 data cable?

  • U/UTP Unfoiled UTP Cable
  • Solid copper inner conductor (23AWG)
  • PE (Polyethylene) copper conductor insulation, 1.02mm thick
  • LSFH (Low Smoke Free of Halogen) outer sheath, 0.50mm thick and 6.2mm diameter
  • 72% nominal speed
  • Comply with TIA/EIA-568B.2-1
  • Crucifix type padding
  • Transfer rate up to 1Gbps
  • Frequency range of up to 250MHz
  • Includes rip cord to make it easier to strip the cable
  • Nominal impedance of 100 ohms
  • Maximum resistance per conductor below 117 ohms/Km

What technical specifications does the Televes 212305 data cable have?

Type DK6000
U/UTP
EuroClass Dca
Class Cat 6
Conductor Material Solid copper
Ø (mm) 0.55 ± 0.02
Conductor type AWG 23
Conductor isolation Material Polyehtylene
Ø (mm) 1,02
Filler “Crucifix” Yes
Outer sheath Material Low Smoke & Free Halogen (LSFH)
Ø (mm) 6,2 ± 0,2
Thickness (mm) 0,50 ± 0,05
Color White
Rip cord Yes
Reaction to fire CPR Dca
Nominal impedance Ω 100 ± 15
Max. conductor resistance Ω/Km < 117
Nominal velocity % 72
Working voltage V 300

FREQUENCY ATTENUATION NEXT PS-NEXT ELFEXT PS-ELFEXT RETURN LOSS
(MHz) (dB/100m)
0,772 1,8 76 74 70 67 -
1 2 74,3 72,3 67,8 64,8 20
4 3,8 65,3 63,3 55,7 52,7 23
8 5,4 60,8 58,8 49,7 46,7 24,5
10 6 59,3 57,3 47,8 44,8 25
16 7,6 56,3 54,3 43,7 40,7 25
20 8,5 54,8 52,8 41,7 38,7 25
25 9,6 53,3 51,3 39,8 36,8 24,3
31,25 10,7 51,9 49,9 37,9 34,9 23,6
62,5 15,5 47,4 45,4 31,8 28,8 21,5
100 19,9 44,3 42,3 27,8 24,8 20,1
125 22,4 42,8 40,8 25,9 22,9 19,4
200 29,2 39,8 37,8 21,7 18,7 18
250 33 38,3 36,3
More Information
More Information
EAN 8424450209714
Hight 0.000
Length 0.000
Width 0.000
System ICT CAT6
Serie 500m
Entorno Interior
Color White
Cobertura Exterior Cables PE
Conductor Interno Cables Copper (Cu)
Product Brand Televes
