50dB UHF/VHF/FM LTE 5G Multiband Amplifier

SKU
TECAMP-MB50L
Brands: Tecatel
Availability: Out of stock
Consult

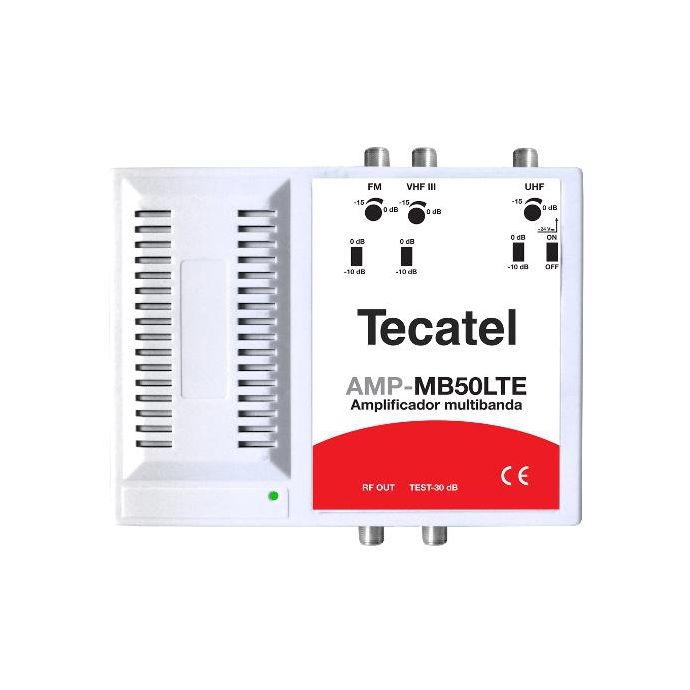

Tecatel AMP-MB50L 50dB Multiband Amplifier UHF/VHF/FM

Tecatel multiband amplifier with 3 inputs (UHF-VHF-FM) and 1 output + Test output at -30dB. The amplifier integrates a 5G LTE filter for the UHF frequency band (470-694 MHz) that eliminates interference from the 2nd Digital Dividend.

This equipment has a maximum gain of 47dB for DTT and 35dB on FM and VHF, all gains are adjustable ± 15dB manually. Supports up to 121dBμV maximum output. This multiband central allows powering previous equipment and active antennas at 24Vdc through the UHF output.

This central amplifier is ideal for buildings with few houses.

Tecatel multi-band amplifier with 3 inputs (UHF / VHF / FM) and 5G LTE filter.

What technical specifications does the Tecatel AMP-MB50L amplifier plant have?

Gain

FM (47-108 MHz)

VHFIII (174 - 230 MHz)

UHF (470 - 694 MHz)

35 dB

35 dB

47 dB

Núumber of inputs 3
Noise figure, typical <3 dB
Output level IMD3=-60dB ( DIN450004B ) 118 dBμV (VHF); 121 dBμV (UHF)
Gain adjustment

Attenuator

Switch

0 ~ -15dB

0 ~ -10dB

Return loss >10 dB
External DC consumption in UHF 24 V
Power consumption 230 VAC / 50 Hz / 7W
Operating temperature range -20ºC +55ºC
Dimensions / Weight (packed) 210 x 110 x 70 mm / 1.2 kg

More Information
EAN 8430549068025
Hight 0.210
Length 0.060
Width 0.150
DTT System DTT Amplifier
MANUFACTURER SERIES DTT F-connector
Color White
Type Broadband station
Entorno Interior
# Inputs 3
Outputs 1
Gain 47
Max. output level Ganancia (dB/uV) 121
LTE compatible No
Current bypass Terrestrial
Product Brand Tecatel
