5E/5S Cascade Amplifier for Antenna Amplifier Multiswitch

Name: 5E/5S Cascade Amplifier for Antenna Amplifier Multiswitch
Brand: Ampliantena
SKU: AMP777
Price: 73.52 EUR
Availability: InStock

SKU

AMP777

Brands: Ampliantena

€73.52 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

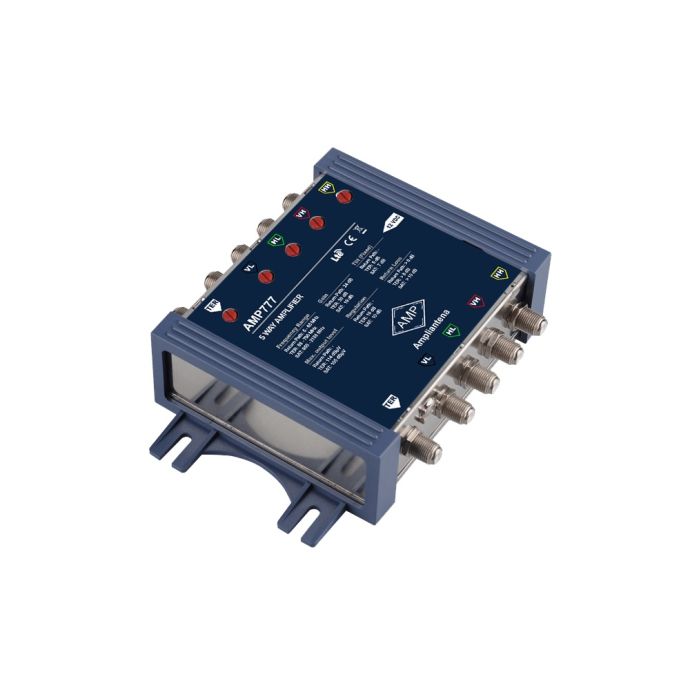

Amplifier 5 Inputs and 5 Outputs Cascade Amplifier AMP777 of Ampliantena

This device will amplify a signal in television distribution networks. It can be installed at the beginning of the network, before the multiswitch or between two multiswitches in cascade, to improve the signal.

The amplifier does not have its own power supply, so we must add one like the following ALI2A.

The AMP777 has 5 inputs (4 satellite inputs and one terrestrial) and 5 outputs. It compensates for signal loss in the network, equalizes the power of signals on different lines and supplies voltage to LNB converters and other network elements.

Details

Technical Specifications of the Ampliantena AMP777 5-Input 5-Output Cascaded Amplifier

Technical specifications
^Type	^Amplifier
Number of outlets	4 SAT + 1 TER
Number of entries	4 SAT + 1 TER
Frequency of work	SAT 950-2150 MHz
	TER 88-790 MHz
	Return channel 5-65 MHz \| Return path 5-65 MHz
Profit	SAT 19 dBuV
	TER 30 dBuV
	Return path 24 dBuV \| Return path 24 dBuV
Regulation of level (attenuation)	SAT 10 dBuV
	TER 10 dBuV
Return losses	SAT 10 dB
	TER 8 dB
	Return channel 8 dB \| Return path 8 dB
Maximum output level	SAT 105 dBuV
Maximum output level	TER 114 dBuV
Measurements	163x120x43 mm

More Information

More Information
Hight	0.040
Length	0.160
Width	0.090
System SAT	SAT Multiswitch
SERIE SAT	Cascade
Color	Blue
Type	Amplifier
# Input satellites	4
# Terrestrial inputs	1
# Inputs	5
#User outputs	5
Gain (dB)	30
Loos (dB)	8
Power	External (not provided)
Product Brand	Ampliantena
