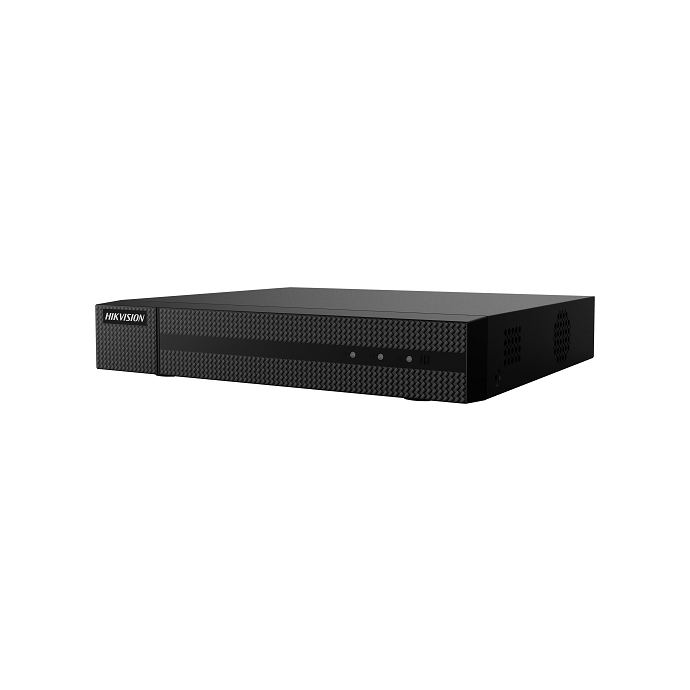

8-channel Hikvision Hybrid 5-in-1 1080p Lite Recorder

SKU
HWD-5108MH
Brands: Hikvision
Availability: Out of stock
Consult

Hikvision HWD-5108H 8-Channel 1080p Lite Hybrid Recorder

Highly compatible 5-in-1 Hikvision recorder (Turbo HD, CVI, HDTVI, CVBS, AHD and IP) for all types of CCTV cameras.

This recorder supports up to 8 connected cameras. It has two way audio. It is compatible with ONVIF. It has VGA and HDMI video outputs. Of its 8 channels, 2 support IP video.

The Hikvision HWD-5108MS hybrid recorder allows remote access up to 128 users through Android and iPhone / iPad devices, using the iVMS-4200, Hik-Connect and iVMS-5200 software. It is also compatible with Chrome, Firefox and Safari browsers, among others ...

5-in-1 hybrid Hikvision CCTV recorder with 8 BNC video channels with 1080p resolution + 2 IP channels at 960p.

What technical specifications does the Hikvision HWD-5108H recorder have?

Video/Audio Input
Supported camera types:   Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30
Support AHD input: 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input
Video/Audio Output
Frame Rate:   Main stream:
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps;
CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Network management
Remote connections:   128
Network protocols:   TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
General
Power Supply:   12 VDC
Consumption:   ≤ 12 W
Working Temperature:   -10 oC to +55 oC (14 oF to 131 oF)
Working Humidity:   10% to 90%
Dimensions:   260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight:   ≤ 1 kg (2.2 lb)



More Information
EAN 6941264054702
Hight 0.400
Length 0.090
Width 0.280
SECURITY - SYSTEM Hibrid 5 on 1
SERIE 2Mpx
Included Mouse, Power supply
Event notifier Yes
No. CCTV Recorder Inputs 2 IP, 8 analogic or TVI
Audio in ports 1
Product Brand Hikvision
Write Your Own Review
You're reviewing:8-channel Hikvision Hybrid 5-in-1 1080p Lite Recorder
Your Rating
File Label Size Download
pdf Ficha técnica del grabador HWD-5108M de Hikvision 656.1 KB Download
