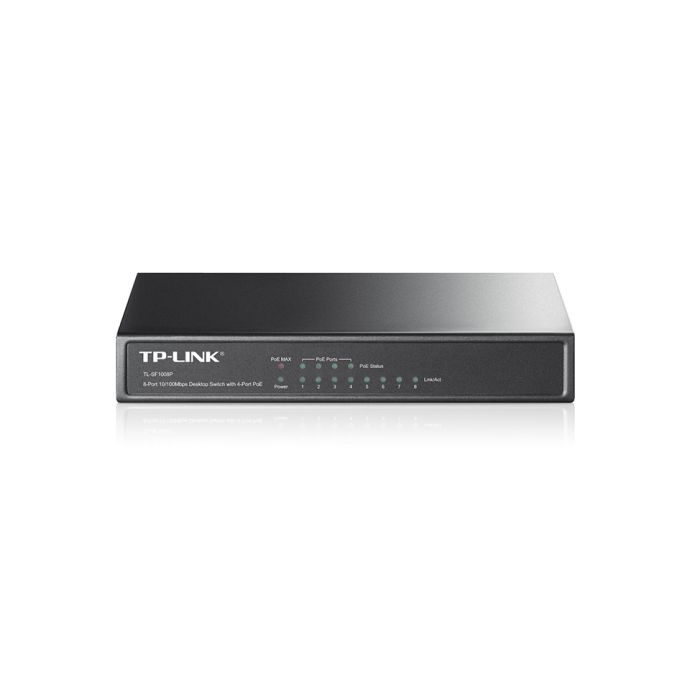

8-port 10/100 Mbps switch with 4 POE ports

SKU
TL-SF1008P
Brands: Tplink
€63.13 Tax included
Availability: In stock
24/48 Hours

8-port 10/100 Mbps TL-SF1008P switch with 4 TP-Link POE ports.

The TL-SF1008P switch is a 10 / 100Mbps 8-port switch that requires no configuration and also offers 4 PoE (Power over Ethernet) ports. This switch can automatically detect and power all IEEE 802.3af compliant power devices. In this situation, the electrical energy is transmitted together with the data in a single cable that allows you to expand your network to where there are no plugs, where you want to fix devices such as access points, IP cameras, IP phones, etc.

The TL-SF1008P also incorporates the priority function, which will help protect the system when system power is overloaded.

-
+

The TL-SF1008P switch has 8 ports, but also incorporates four PoE ports. It is compatible with devices conforming to the IEEE 802.3af standard and does not require any configuration or installation.

What technical characteristics does the Switch TL-SF1008P have?

  • Supports PoE power up to 15.4 W for each PoE port
  • Supports PoE power up to 57 W for all PoE ports
  • Supports devices that support the IEEE 802.3af PoE standard
  • Supports IEEE 802.3x flow control in Full Duplex mode and Back-Pressure in Half Duplex mode
  • The TL-SF1008P has a 2K MAC address table and supports automatic learning and expiration of MAC addresses (Auto-Learning and Auto-aging)
  • Includes led indicators to monitor power, link status, activity and speed
  • External Power Supply

What specifications does the TL-SF1008P Switch have?

  • 8-port 10/100 Mbps RJ45 interface
  • Automatic negotiation, Automatic MDI / MDIX
  • Network Media:
  • 10BASE-T: UTP cable category 3, 4, 5 (100 meters maximum)
  • EIA / TIA-568 100Ω STP (maximum 100 m)
  • 100BASE-TX: UTP cable categories 5, 5e (maximum 100 meters)
  • EIA / TIA-568 100Ω STP (maximum 100 m)
  • No fans
  • Maximum Power Consumption (PoE on): 60.2W (220V / 50Hz)
  • Maximum (PoE off): 3.2W (220V / 50Hz)
  • External power supply (output: 48 V DC / 1.25 A)
  • PoE Ports (RJ45) Standard: 802.3 compliant
  • PoE Ports: Port1- Port4
  • Power Supply: 57W
  • Backbound Bandwidth 1.6Gbps
  • MAC Address Table 2k
  • Dimensions of 6.7 * 3.9 * 1.1 inches (171 * 98 * 27 mm)
  • SOFTWARE FEATURES
  • Store-And-Forward Transmission Method
  • Supports devices compatible with the IEEE 802.3af standard
  • Priority function
  • Automatic learning and expiration of MAC addresses (Auto-Learning and Auto-aging)
  • IEEE 802.3x flow control in Full Duplex mode and Back-Pressure in Half Duplex mode
  • Certifications FCC, CE, RoHS
  • Consumption 2.3 W (maximum without any connected device)
  • 59.3W (maximum with devices connected with a consumption of 57 W)
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
  • Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing

What does the TL-SF1008P Switch include?

  • Switch TL-SF1008P.
  • Power adapter
  • User's manual
More Information
EAN 6935364020682
Hight 0.280
Length 0.120
Width 0.260
RED - System POE
RED - SERIE 8 Ports
Color Black
Network Equipment Switch
Ports 8
Data Speed Fast Ethernet (10/100Mbps)
PoE Yes
Product Brand Tplink
