8 Port Gigabit PoE 53W + 2 SFP Switch

Name: 8 Port Gigabit PoE 53W + 2 SFP Switch
Brand: Tplink
SKU: TL-SG2210P
Price: 168.04 EUR
Availability: InStock
Rating: 100 (1 reviews)

SKU

TL-SG2210P

Brands: Tplink

€168.04 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

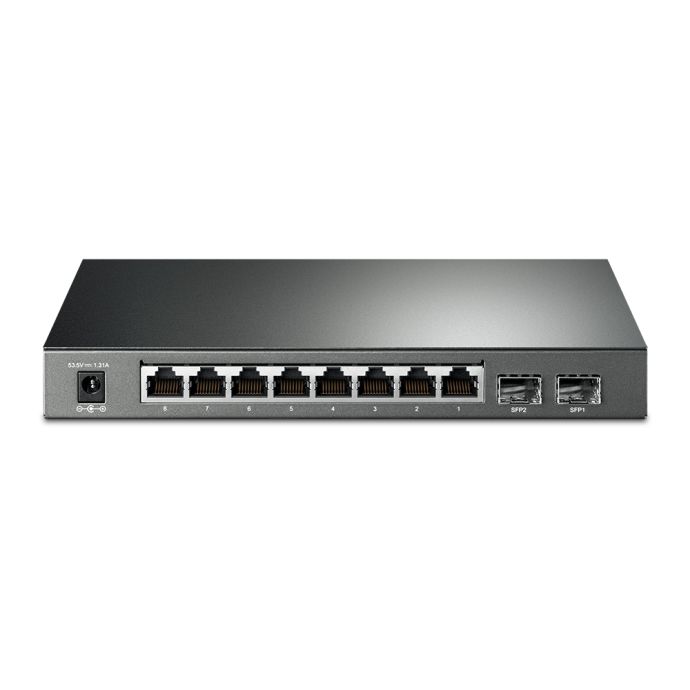

Tp-Link TL-SG2210P 8-Port Gigabit PoE Switch with 2 SFP Slots

8-port Gigabit Ethernet switch (10/100/1000Mbps) with PoE and 2 SFP slots. This equipment provides the maximum data transfer speed, specially designed for small and medium business networks.

Ideal solution for your business network, ensuring performance and reliability, with quick installation and configuration. It includes security strategies, storm control, applications to optimize voice and video, and numerous administration functions, with layer 2 management features. Its energy efficiency saves up to 50% in energy consumption.

PoE with a total power of 53W allows to power any device compatible with 802.3af, to connect access points, surveillance cameras, IP phone and other devices.

Details

8-port Gigabit Ethernet Tp-Link switch with 53W PoE and 2 SFP slots

What technical specifications does the TL-SG2210P switch from Tp-Link have?

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface	8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF
Fan Quantity	Fanless
Power Supply	100~240VAC, 50/60Hz External Power Adapter(Output: 53.5VDC/1.31A)
Power Consumption	Maximum (PoE on): 75.3W (220V/50Hz) Maximum (PoE off): 10.5W (220V/50Hz)
PoE Ports (RJ45)	Standard: 802.3af/at compliant PoE Ports: 8 Ports Power Supply: 58W*
Dimensions ( W x D x H )	8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)

PERFORMANCE
Bandwidth/Backplane	20Gbps
Packet Forwarding Rate	14.88Mpps
MAC Address Table	8k
Packet Buffer Memory	512KB
Jumbo Frame	9216 Bytes

SOFTWARE FEATURES
Quality of Service	Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN
VLAN	Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List	L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based
Security	SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control 802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend
L2 Switching Features	IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control LLDP(LLDP-MED)
Management	Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG2210P Power Adapter Installation Guide Resource CD Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

More Information

More Information
EAN	6935364030698
Hight	0.300
Length	0.600
Width	0.170
REDES - System	POE
REDES - SERIE	8 Ports
Color	Black
Network Equipment	Switch
Ports	8
Data Speed	Gigabit (10/100/1000Mbps)
PoE	Yes
Product Brand	Tplink
