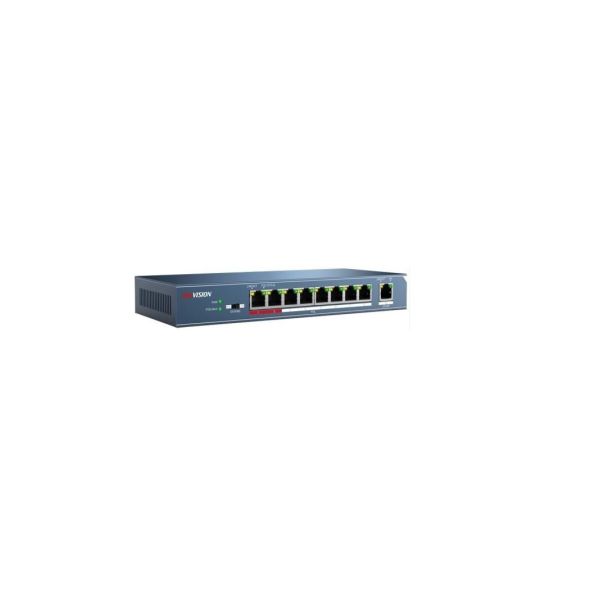

8-port switch POE DS-3E0109P-E from Hikvision
Availability: On request
1 to 7 days
8 ports POE switch
The DS-3E0109P-E switch is an 8-port PoE desktop switch that allows you to connect network devices together in a simple way.
It incorporates Ethernet network capabilities at 100Mbps and Fast Ethernet at 10 / 100Mbps.
These PoE ports automatically detect the presence of PoE devices compatible with the IEEE 802.3af standard and supply them with power.
Unmanaged PoE switch from 8 ports to 100Mbps.
What technical characteristics does the DS-3E0109P-E switch have?
- Compatible with IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE)
- 8 x 10 / 100Mbps Auto-MDIX PoEports
- Provides up to 30 watts per PoE port
- PoE power budget 123W
- Overvoltage protection of 4 kV for PoE ports
- IEEE 802.3x flow control support
- Plug-and-play installation
- 1.8 Gbps switching fabric
- 1.25 MbitsRAM Data Buffer
- 4K MAC address entries
- Rugged metal housing
What technical specifications does the DS-3E0109P-E switch have?
| Ports |
|---|
| Network Ports: |
|
9 |
| PoE Port: |
|
8, 10/100Mbps RJ45 ports |
| Uplink Port: |
|
1, 100M Ethernet Port |
| Standard |
|---|
| Network Protocol: |
|
IEEE802.3,802.3u,802.3x, 802.3af, 802.3at |
| Performance |
|---|
| Switching Capacity: |
|
1.8Gbps |
| Max. Forwarding Rate: |
|
1.34Mpps |
| High Priority Ports: |
|
Ports 1-2 |
| Forwarding Mode: |
|
Store-and-forward |
| MAC Address Table: |
|
4k |
| Flow Control: |
|
IEEE802.3x full duplex |
| Power Over Ethernet |
|---|
| PoE Standard: |
|
IEEE802.3af, IEEE802.3at |
| PoE Power Budget: |
|
123W |
| Working Mode: |
|
Extend On:250m,10M,CAT 5e
Extend Off:100m |
| General |
|---|
| Power Supply: |
|
51V DC, 2.5A |
| Power Consumption: |
|
≤127W |
| Surge Protection: |
|
4KV |
| Working Temperature: |
|
Temperature: 0℃-40℃ |
| Working Humidity: |
|
Humidity: 10%-90% , non-condensing |
| Storage Temperature: |
|
Temperature: -40℃-70℃ |
| Storage Humidity: |
|
Humidity: 5%-90% , non-condensing |
| Weight: |
|
0.57kg |
| Dimension: |
|
235mm*103mm*27mm |
More Information | EAN | 8423330109014 |
|---|
| Hight | 0.000 |
|---|
| Length | 0.000 |
|---|
| Width | 0.000 |
|---|
| REDES - System | POE |
|---|
| REDES - SERIE | 8 Ports |
|---|
| Color | Black |
|---|
| Network Equipment | Switch |
|---|
| Ports | 8 |
|---|
| Data Speed | Fast Ethernet (10/100Mbps) |
|---|
| PoE | Yes |
|---|
| Product Brand | Hikvision |
|---|
| File | Label | Size | Download |
 | Ficha técnica del switch DS-3E0109P-E | 462.4 KB | Download |
