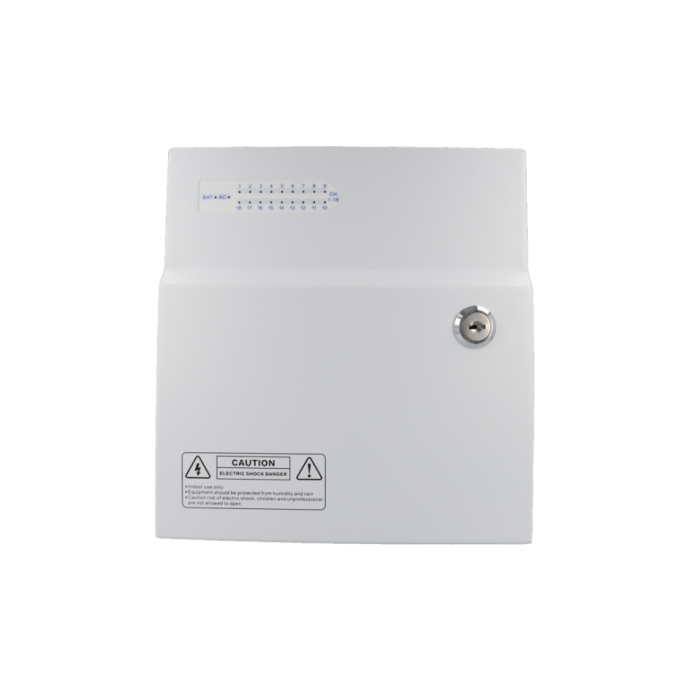

main product photo

A-CCTV DC 12V 20A Power Supply

SKU
A-12VDC20A-BOX-BAT
Brands: A-CCTV
€66.91 Tax included
11% Discount for professionals
A-CCTV
Availability: In stock
24/48 Hours
Be the first to review this product

Power Supply 12Vdc 20A from A-CCTV

This power supply is used for access control in CCTV systems. It has a power output of 12Vdc with a maximum consumption of 20A.

This power supply comes with 18 outputs per copper pair. It works as a UPS, as it includes an auxiliary 12V battery with a duration of up to 7 hours. Provides surge, overvoltage and short circuit protection.

Comes with a lockable metal enclosure. It is prepared for installation on a wall surface.

-
+

Technical Specifications of the A-CCTV 12Vdc 20th Power Supply

Power Supply and Consumption

Power Input: AC 96 ~ 264V ; 50 / 60 Hz

Power output: DC 12V

Maximum consumption: 20A

Number of outlets: 18 outlets per copper pair

Output plug: Clema

UPS function: Yes (12V / 7AH batteries)

Battery connection: F1

Power supply protection: Surge / Overvoltage / Short-circuit

Maximum power consumption per output: 1,1A

Material and dimensions

Dimensions: 325 x 250 x 80 mm

Net weight: 3030 g

Environment

Operating temperature: -20 ºC ~ 50 ºC

More Information
More Information
Hight 0.080
Length 0.230
Width 0.220
Color White
System Electronic Feder
SERIE Supply
Product Brand A-CCTV
Reviews
Write Your Own Review
You're reviewing:A-CCTV DC 12V 20A Power Supply
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Fuente de Alimentación DC 12V 20A de A-CCTV 822.4 KB Download
