Access Control for EM RDIF, MF and NFC from Akuvox

SKU
AK-A01S
Brands: Akuvox
€125.36 Tax included
Akuvox
Availability: On request
1 to 7 days

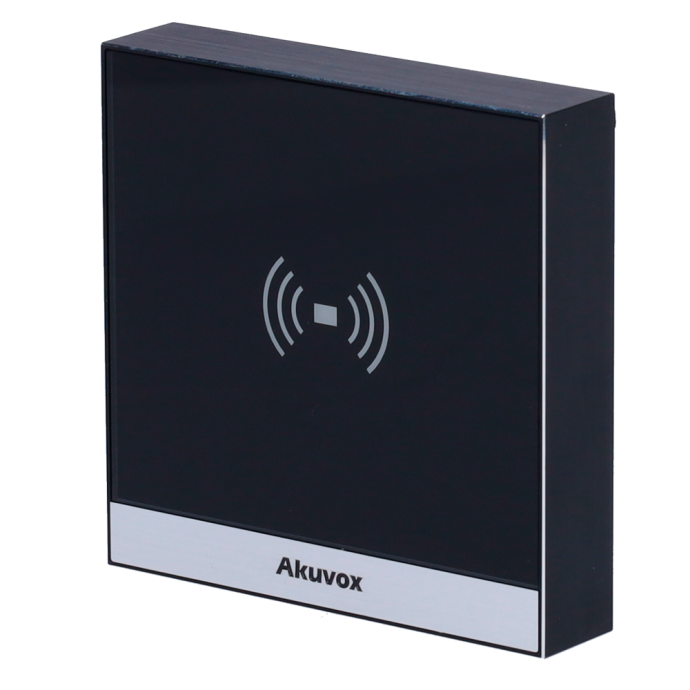

Akuvox Time Attendance Control for EM RDIF,MF and NFC

It is an EM RDIF, MF and NFC card reader that can function as a reader or independently.

It has an integrated speaker, with the capacity to identify up to 20,000 cards and 100,000 records. The control can be installed both indoors and outdoors (IP65) and with surface mounting.

Its integrated controller and access schedules allow you a specific configuration of the users. This configuration can be remotely with the SmartPlus application or through the web browser. Communication is done through TCP/IP and Wiegand port.

The presence control has very discreet dimensions (86 x 86 x 33) and a compact design, with a body made of plastic, with an aluminum alloy frame and a tempered glass front.

BOX CONTENTS

*Access device
*Instructions for use
*Mounting material

Technical Specifications of Akuvox Time & Attendance Control for EM/MF and NFC





Brain

Akuvox

Model

A01S

Access control

Door opening with EM 125 kHz and MF 13.56 MHz and NFC cards, with records

Capacity

Hasta 20.000 usuarios y 20.000 tarjetas

Records

100.000 records

Communication

TCP/IP y Wiegand

Outputs

Wiegand OUT, 1 relay, 1 for lock (12V/600mA)

Inputs

Wiegand IN, 2 pushbutton, 1 tamper

Remote access

SmartPlus mobile phone application or configuration via WEB browser

Audio

Speaker for opening messages

Network interface

Ethernet 10/100 BaseT

Operating mode

Local network and/or through the cloud in different networks

Firmware updates

Remotely with the cloud through an installer account or through a local web browser

Material

Plastic (body), aluminum alloy (frame) and tempered glass (front)

Degree of protection

IP65

Temp. functioning

-20º C ~ +55º C

Dimensions

86 (Al) x 86 (An) x 33 (Fo) mm

Feeding

DC 12 V / 1000 mA máx. / PoE IEEE802.3af

Weight

206 g

More Information
EAN6933964802158
Hight0.150
Length0.090
Width0.130
ACCESOS - SISTEMAKey Ring
ACCESOS - SERIERFID/EM
ColorBlack
InstallationIndoor
IdentificationEM Card/Keychain, MIFARE Card/Keychain
Product BrandAkuvox
