Access Control Kit CA-2 Mini and ATF-12 4+N by Auta

SKU
AUT730181
Brands: AUTA
€110.99 Tax included
AUTA
Availability: On request
1 to 7 days

Audio Switch Kit 730180 + Source 715503

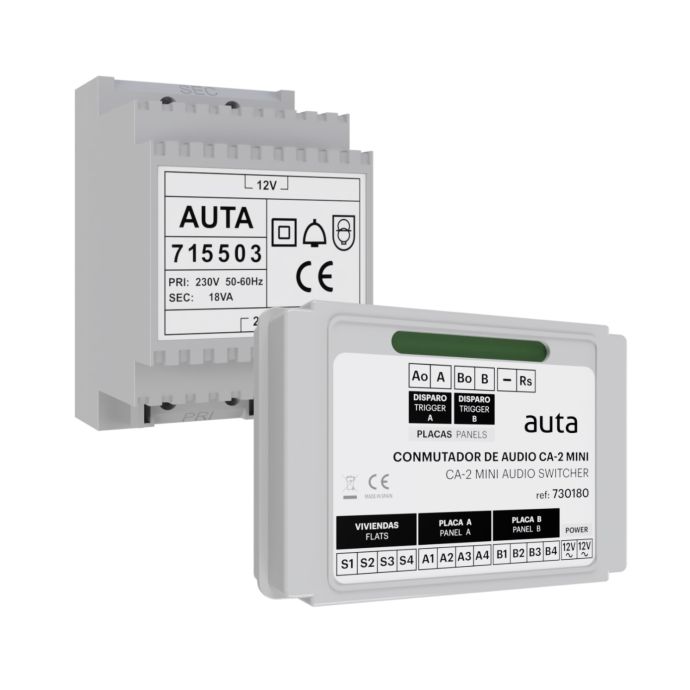

This kit is made up of references 730180 (CA-2 Audio Switch) and 715503 (ATF-12 Power Supply).

The switch allows you to connect up to 2 access doors with Auta analog panels in 4+N systems. It has 2 different operating modes: the factory default, in which a call ends if another one enters; and a second mode of operation, in which if a second call comes in, the switch remains on the original one until it ends.

The ATF power supply is 12V and its mounting is on a DIN rail or surface.

Technical Specifications of the Audio Switcher Kit 730180 + Source 7155033



DISPARO TRIGGER A

Ao

Generador de llamada (placa A)

Call generator (panel A)






A

Hilo común de pulsadores (placa A)

Push-buttons common wire (panel A)




DISPARO TRIGGER B

Bo

Generador de llamada (placa B)

Call generator (panel B)




B

Hilo común de pulsadores (placa B)

Push-buttons common wire (panel B)






-

Selección del MODO 2 (conectar al - del sistema)

Selection of MODE 2 (connect to - of the system)



Rs

NO USADO

NOT USED



VIVIENDAS FLATS

S1 S2 S3 S4

Conexión de los hilos comunes de la vertical (COMÚN, ALTAVOZ, MICRO y ABREPUERTAS)

Connection of the riser common wires (COMMON, SPEAKER, MICRO and DOOR)



PLACA A PANEL A

A1 A2 A3 A4

Conexión de los hilos comunes de la placa A (COMÚN, ALTAVOZ, MICRO y ABREPUERTAS)

) Connection of the panel A common wires (COMMON, SPEAKER, MICRO and DOOR)



PLACA B PANEL B

B1 B2 B3 B4

Conexión de los hilos comunes de la placa B (COMÚN, ALTAVOZ, MICRO y ABREPUERTAS)

Connection of the panel B common wires (COMMON, SPEAKER, MICRO and DOOR)



POWER

12V

12 Vca

12 Vca



12V

12 Vca

12 Vca


More Information
EAN8435595004270
Hight0.190
Length0.070
Width0.110
ACCESOS - SISTEMA4+N
ACCESOS - SERIEKit
ColorWhite
Product BrandAUTA
