Build and manage a scalable enterprise Wi-Fi network, adapted to handle the power of hundreds of TP-LINK EAPs at an affordable price.

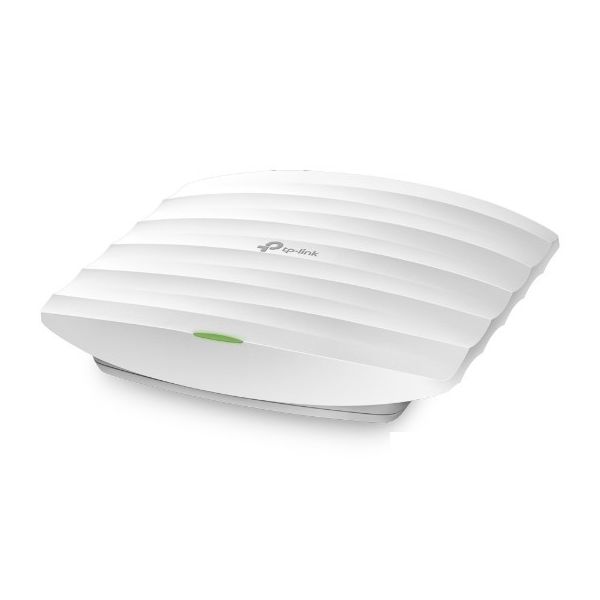

The EAP110 access point supports PoE IEEE 802.3af for convenient and affordable installation, has a simple mounting design for easy attachment to a wall or ceiling.
This access point also has a wireless data rate of 300 Mbps for uninterrupted wireless connections
The EAP115 access point has a durable housing that prevents dust from falling into the PCB through the bypass port to provide long-term, unimpeded operation.
What technical characteristics does the EAP115 access point have?
The EAP Driver Software allows administrators to easily manage hundreds of EAPs
Supports passive PoE for a comfortable and easy installation
Easy-to-assemble design allows quick and easy installation on the wall or ceiling
Wireless data rate rate at 300 Mbps allows for uninterrupted wireless connections
The Captive Portal provides a simple authentication method for Wi-Fi clients
WPA / WPA2-enterprise, secure authentication with 802.1X RADIUS and unauthorized access point detection that guarantee WLAN security
The Multi-SSID divides into multiple wireless networks for different users
Load balancing guarantees a large number of users of the network with fluidity of connection, in large business networks
Compatible with 802.11 b / g / n products
It uses materials of low emission of smoke and zero halogens (LSOH) for compliance with UL2043
Multiple modes of operation that satisfy different application conditions including managed Access Point and independent Access Point modes
The QoS function prioritizes data, voice and video applications to guarantee the best service in time sensitive applications, with priority over the rest of the traffic
Prevents dust from falling into the PCB through the ventilation grille, ensuring long-term, trouble-free operation
What technical specifications does the EAP115 access point have?
HARDWARE FEATURES
Interface
Fast Ethernet (RJ-45) Port * 1 (Supports PoE Passive)
Buttons
Reset
Power supply
Passive PoE 24VDC / 1A power supply
Power Consumption
7.7W
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions
180 * 180 * 47.5mm (7.1 x 7.1 x 1.9 in.)
Type of Antenna
2 Omnidirectional 3dBi Internals
Mounting
Ceiling / Wall Mounting (Kits included)
Physical Security Lock
Kensington Lock Slot
Watch Dog
Yes
WIRELESS CHARACTERISTICS
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic)
Reception Sensitivity
300M: -71dBm @ 10% PER 150M: -75dBm @ 10% PER 54M: -78dBm @ 10% PER 11M: -93dBm @ 8% PER 6M: -92dBm @ 10% PER 1M: -96dBm @ 8% PER
Wireless functions
Multiple SSIDs (Up to 8 SSIDs) Enable / Disable Wireless Radio Automatic Channel Assignment Transmission Power Control (Adjustable Transmission Power in dBm) QoS (WMM) Load balancing Wireless Schedule Wireless Statistics based on SSID / Access Point / Client
Wireless Security
Authentication through Captive Portal Wireless Mac Address Filtering Wireless Isolation Between Customers Mapping SSID to VLAN Unauthorized Access Point Detection Supports 802.1X 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Potency of transmission
EC: <20dBm FCC: <26dBm
MANAGEMENT
EAP Driver Software
Yes
Alerts by Email
Yes
LED ON / OFF control
Yes
MAC Access Management Control
Yes
SNMP
v1, v2c
Access to the Local System Registry / Remote System Registry
Local / Remote Syslog
Telnet
Yes
Web-based management
HTTP / HTTPS
Management VLAN
And it is
OTHERS
Certifications
CE, FCC, RoHS
Package content
N-300Mbps Wireless Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power cord, Assembly Kit Resources CD Installation guide
