Active transmitter balun for 400 meters range On request
Delivery: 1 to 7 days

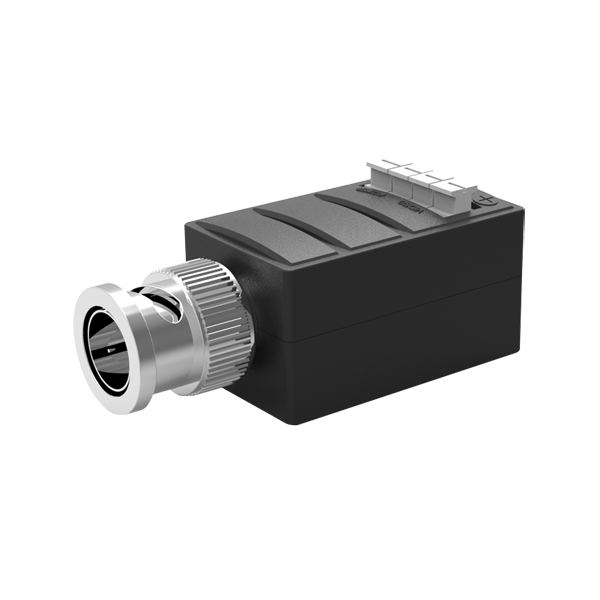

Balun BNC Male Active Transceiver BA615A-TX
Balun active transmitter of 1 video channel with BNC Male input and 4-pin UTP output for CCTV video surveillance systems.
Optimized to transmit HD signals: HDTVI , HDCVI and AHD , with a maximum range between 400 and 700 meters in Full HD 1080p resolution via UTP category 5e or 6 twisted pair cable.
Compatible with the BA615A-RX
Balun active transceiver with a range of 400 meters, compatible with BA615A-RX.
What are the main features of the BA615A-TX emitter balun?
Balun (transceiver)
Optimized for HD video: HDTVI / HDCVI / AHD
1 channel
Active
Power 12VVDC
BNC/UTP 4 pins
Video
Maximum range 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
1 Transmitter
Compatible with BA615A-RX
What technical specifications does the BA615A-TX transmitter balun have?
Number of channels 1 channel
Power supply 12VDC / 1A (Passive)
Video Input/Output BNC (male)
Transmission distance 400 m (720p/1080p HDTVI), 550/470 m (720p/1080p HDCVI) and 700/470 m (720p/1080p AHD)
Twisted pair connector Connector with 4 pins
Crosstalk 60 dB
Input impedance 75 Ohm
Output Impedance 100 Ohm
Cable category UTP category 5e/6
More Information EAN 8435325421353 Hight 0.080 Length 0.050 Width 0.080 Color Black SECURITY - SYSTEM Balun SEGURIDAD - SERIE Balun CCTV Accessory Balun Product Brand TDTprofesional
