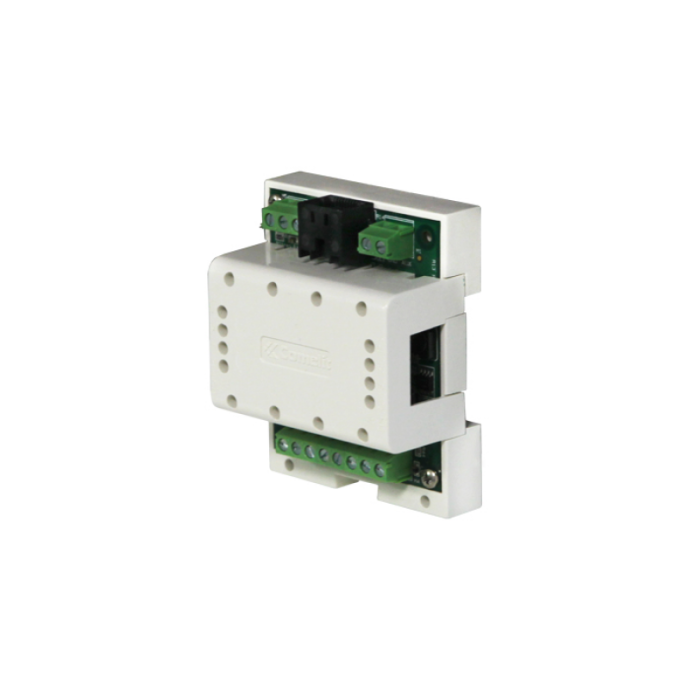

This is a voltage free smart module. It is used in installations with VIP systems.
It has 4 DIN modules. For its use and programming of the desired function, follow the instructions in the technical manual.
Dimensions: 65x85x35mm.
| VIP SYSTEM RELAY ACTUATOR MODULE | |
| COMPATIBLE SYSTEMS | |
| ViP | Yes |
| ELECTRICAL CHARACTERISTICS | |
| Type of power supply | PoE |
| PoE power supply | Standard IEEE 802.3af, Comelit PoE (56VDC) |
| HARDWARE FEATURES | |
| Number of outputs (n°) | 2 |
| Type of outputs | Open Collector, Relay (C-NO-NC, 10A@12÷24 VAC/VDC) |
| Number of digital inputs (n°) | 2 |
| Communication ports | RJ45 (Ethernet), RS485 |
| NETWORK AND COMMUNICATION PROTOCOLS | |
| Type of LAN network | Ethernet 10 Mbit/s |
| GENERAL FEATURES | |
| CE certifications | RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011) |
| Type of finishing materials | Plastic |
| Product color | White |
| Depth (mm) | 85 |
| Height (mm) | 35 |
| Width (mm) | 66 |
| MAIN FEATURES | |
| Operating temperature (°C) | -10 ÷ 30 |
| Operating humidity (RH max) (%) | 25 ÷ 95 |
| DIN rail mounted | Yes |
| DIN modules (no.) (n°) | 4 |
| EAN | 8023903209433 |
|---|---|
| Hight | 0.000 |
| Length | 0.000 |
| Width | 0.000 |
| ACCESOS - SISTEMA | Rele |
| ACCESOS - SERIE | VIP |
| Color | White |
| Color Portero/Videoportero | Solo Audio |
| Type | replacement |
| Product Brand | Comelit |
