Additional 7 "Monitor for ES0105 and ES0106 On request
Delivery: 1 to 7 days

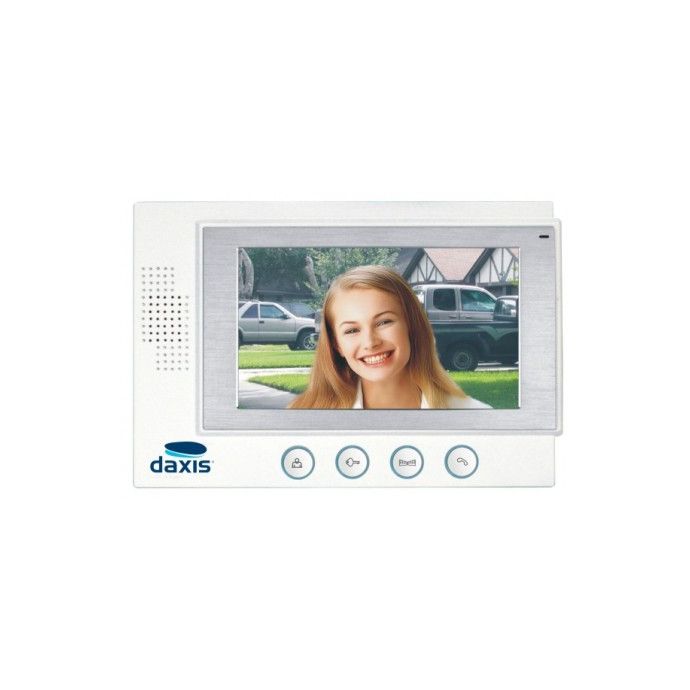

Daxis 7 "Additional Monitor ES0110
The Daxis ES0110 monitor is an additional monitor for use with the ES0106 and ES0105 video door entry kit.
This 7 "monitor can be used as a replacement for the ES0106 and ES0105 kits or as a supplement when you want to incorporate another monitor into the installation.
It can be used for a maximum operating distance of 50 m.
Includes power supply
The ES0110 monitor is an additional 7 "monitor for use with Daxis ES0106 and ES0105 video door entry kits.
What technical features does the ES0110 monitor have?
Input power 100 ~ 240V 60Hz / 50Hz
Output power of 12V 1200mA
The total time communication of 120s +/- 10%
Tracking time 40 +/- 10%
Operating distance of 50m (4x0.5mm2)
Power consumption: Standby: <0.5 W; Operating 10W
Lighting 2Lux
What technical specifications does the ES0110 monitor have?
Parameter Especifications Units
screen size 7.0 (16:9 diagonal)
inch
Resolution 1440(H)x234(V)
point
Active Area 154.08(H)x86.58(V)
mm
Pixel Dimension 0.107(H)x0.370(V)
mm
Display Dimension 166.0(L)x100.0(A)x7.2(P) (tipo)
mm
More Information EAN 5600364707109 Hight 0.300 Length 0.020 Width 0.150 ACCESOS - SISTEMA 4+N ACCESOS - SERIE Accessories Color White Product Brand Daxis
