Advanced Access Control Module for Ultra Panels

SKU
COMSK9001U
Brands: Comelit
€329.39 Tax included
Free shipping
(Iberian Peninsula)
Comelit
Availability: On request
1 to 7 days

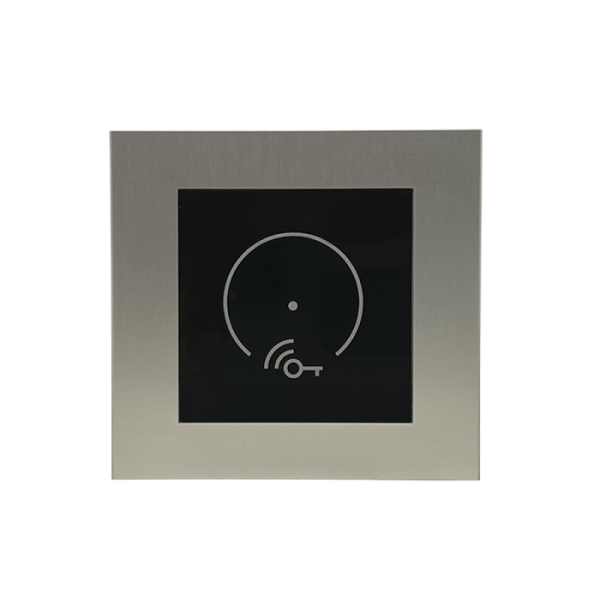

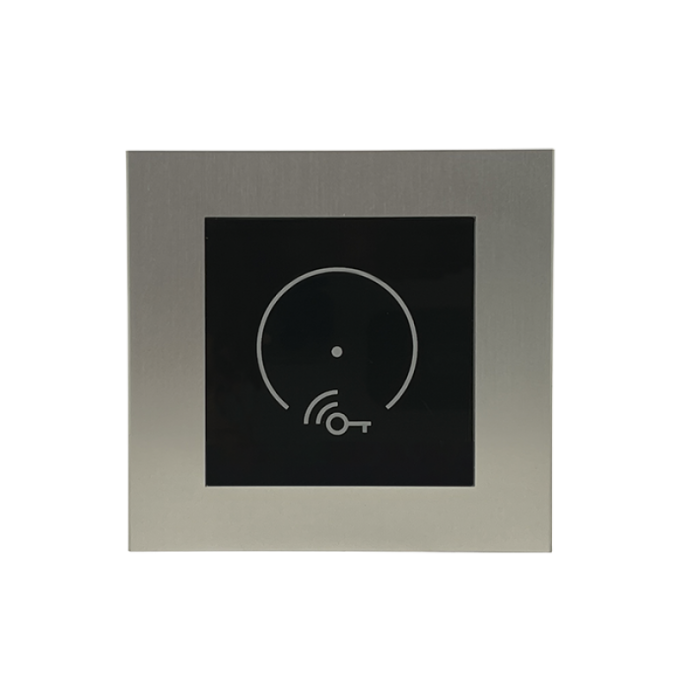

Simplekey Advanced Ultra SK9001U Access Control Module

This module is both a reader and an access controller for Comelit Ultra series entrance panels. It is also a central control, compatible with all systems. With the option of creating complex multi-door systems without a fixed connection, but through a virtual network.

Simplekey technology allows keys or cards to be encoded through connection to the PC's USB port. Simple to install and use, but through a virtual network and through free software (It is necessary to purchase the SK9091 interface for use and configuration from the PC).

Reading capacity of up to 1,500 keys and cards, which means that it can memorize up to 1,500 users.

It can be wall mounted or embedded in the wall, with a special accessory. It comes with an anodized aluminum alloy coating.

Dimensions: 100x90x35mm

Technical Specifications of the Simplekey Advanced Ultra SK9001U Access Control Module

Programming:

The reader is programmed by encoding the cards using the SIMPLEKEY ADVANCED software.
The software is available in two versions:
• Desktop version to install on the PC: SIMPLEKEY ADVANCED software present in the kit art. SK9091, with local memorized database;
• Cloud version: free web platform www.simplekey.eu with cloud database (also in this case it is necessary to use the encoder present in the kit art. SK9091).

GENERAL DATA
Height (mm) 90
Width (mm) 100
Depth (mm) 35
Operating temperature (°C) -25 ÷ 55
IP protection rating IP65
Product color Aluminium, Black RAL9005
Type of finishing materials PMMA, Anodized aluminum
Removable terminals Yes
Number of outputs (n°) 2
Product weight (g) 350
Wall-mounted Yes, with a dedicated accessory
Maximum absorption (W) 3
Audio/video Simplebus 2 with power supply art. 1210/1210A Yes
Number of inputs (n°) 2
Operating humidity (RH max) (%) 25 ÷ 95
Door opener Yes
Type of power supply External power supply
Absorption in stand-by (W) 2
Number of auxiliary relays (n°) 1
Number of storable proximity keys 1500
The technical specifications are subject to change without prior notice.
