Aidoo Wi-Fi 3 Wires by Airzone

SKU
AZAI6WSC
Brands: Airzone
€131.29 Tax included
Availability: On request
1 to 7 days

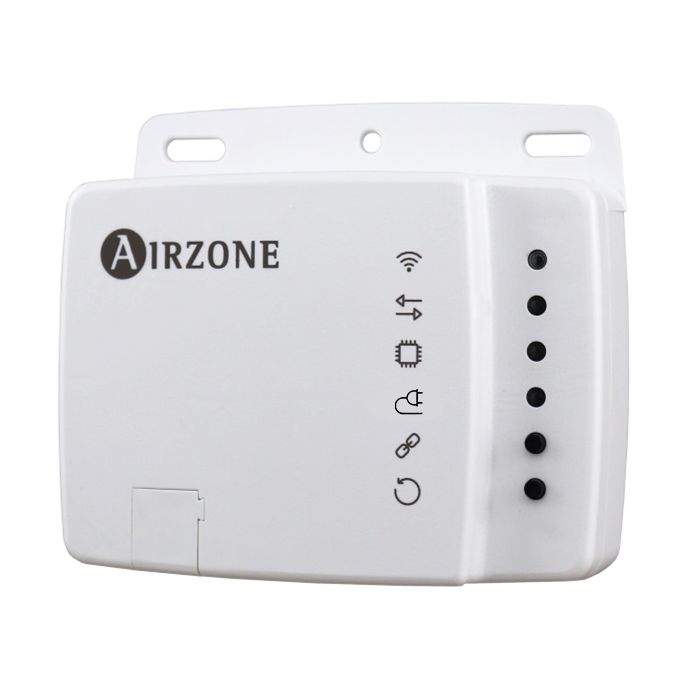

Universal Airzone Aidoo WiFi air conditioning adapter.

With this device you can integrate almost any air conditioning machine in a wifi system . It allows complete control of air conditioning machines and heat pumps through home automation controllers.

The Aidoo will be powered by the air conditioning equipment. It is very easy to install and configure and communicates bidirectionally with the HVAC equipment. With this device, you will take advantage of all the potential for energy savings and comfort, and you will be able to manage it from your mobile phone or your voice assistants. And you can manage it from your cell phone or your voice assistants. It is ideal for homes, holiday homes, offices, etc. The control is done through the Arizone Cloud App, available for IOS and Android, it is very intuitive. Wireless connection can be made through the network via WiFi. The device is powered through the indoor unit.

Among its features we find: control of the different parameters of the equipment, error detection in communication, time programming of temperature and operating mode, multi-user, multi-session, port via modbus protocol, temperature limits for hot and cold.

Control is via the Arizone Cloud App, available for iOS and Android, which is very intuitive. Wireless connection can be made via the network using WiFi. The device is powered by the indoor unit.

*It is necessary to check the compatibility with Aidoo Z-Wave. When ordering it is necessary to indicate the model of the indoor unit in the comments field of the shopping cart and the brand of air conditioner.



-
+

Technical Specifications of the Aidoo WiFi Device for Air Conditioning Machines

Conexión con unidad interior / Connection to indoor unit / Conexão ao equipamento
Tipo de alimentación / Type of power supply /
Tipo de alimentação
Vdc
V max 18 V
I max 137.5 mA
V in 12 - 16 V
Consumo / Consumption / Consumo 0.85 W
Tipo de cable / Type of cable / Tipo de cabo AZPV8WIRE03
Longitud del cable / Wire length /
Comprimento do cabo
2.5 m (8.2 ft)
Comunicaciones WI-FI / WI-FI Communication / Comunicação WI-FI
Protocolo / Protocol / Protocolo WI-FI – CERTIFIED TM
802.11b/g/n (802.11n up to 150 Mbps)
Modelo / Model / Modelo ESP-WROOM-32
Frecuencia de comunicación / Communication frequency / Frequência de comunicação 2.4 GHz
Potencia máxima - Potencia de antena / Maximum power - Antenna power / Potência máxima - Potência da antena 20 dBm
Sensibilidad / Sensitivity / Sensibilidade - 97 dBm
Dirección IP / IP address / Endereço IP DHCP
Comunicaciones Bluetooth / Bluetooth Communication / Comunicação Bluetooth
Protocolo / Protocol / Protocolo Bluetooth v4.2 BR/EDR and BLE
specification
Clase Bluetooth / Bluetooth class / Classe
Bluetooth
Class-1, class-2 and class-3 transmitter
Puerto RS-485 / RS-485 Port / Porta RS-485
Cable apantallado y trenzado / Shielded twisted pair / Cabo blindado e trançado 2 x 0.22 + 2 x 0.5 mm2 (AWG 23 – 2
wired + AWG 20 – 2 wired)
Protocolo de comunicaciones /Communi- cation protocol / Protocolo de comunicação RS-485
Par – 19200 bps
Temperaturas operativas / Operating temperatures / Temperatura de operaçao
Almacenaje / Storage / Armazenamento - 20 … 70 ºC (- 4 … 158 ºF)
Funcionamiento / Operation /
Funcionamento
0 … 45 ºC (32 … 113 ºF)
Rango de humedad de funcionamiento /
Operating humidity rango /
Intervalo de humidade de funcionamento
5 … 90 %
(non-condensing)
Aspectos mecánicos / Mechanical aspects / Aspectos mecânicos
Grado de protección / Protection class /
Grau de proteção
IP 41
Peso / Weight / Peso 130 g (0.29 lb)
More Information
EAN 8435503558260
Hight 0.000
Length 0.000
Width 0.000
System Z-Wave
SERIE Accessories
Color White
Product Brand Airzone
