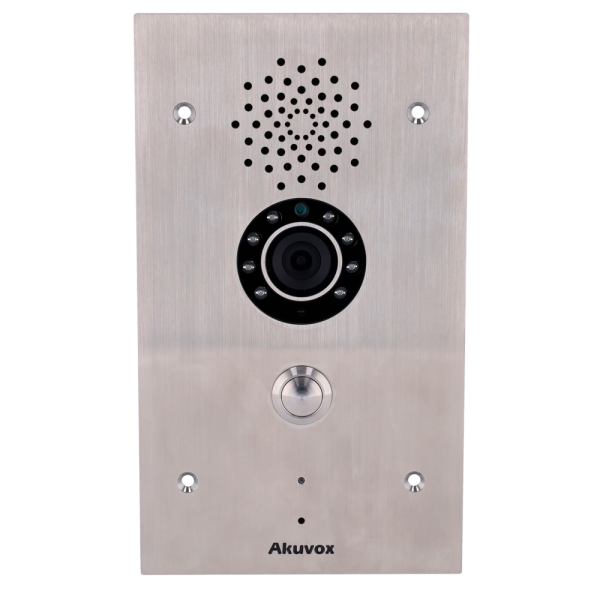

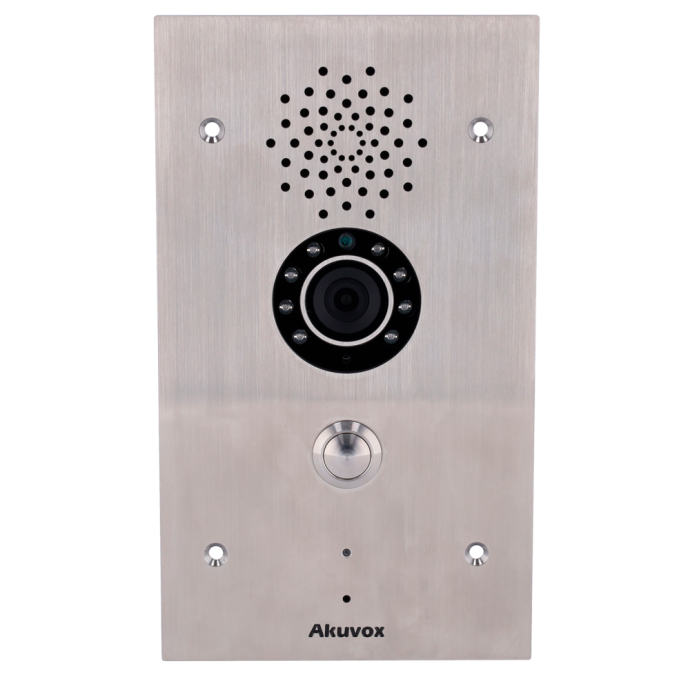

Akuvox Cloud E21V POE Emergency IP Video Intercom Plate

SKU
AK-E21V
Brands: Akuvox
€306.61 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

Placa de Videoportero E21V de Akuvox

Videointerfono IP con cámara 2Mpx (1920x1080) con lente gran angular y visión nocturna con iluminación IR. La placa tiene altavoz y micrófono integrados con tecnología Crystal clear. Se trata de un intercomunicador de emergencia  prueba de vandalismo. Hecha en acero inoxidable SUS316 antivandálico IK06. Se usa en espacios públicos como estacionamientos y subterráneos.

It has 2 relay outputs for main locks, RS485 and audio. And with 2 push button inputs. Plus call status LED.

The connection of the board is TCP/IP with 10/100 baseT/ RS485/RTSP Ethernet network interface. Its configuration can be done through the web browser. The installer has control in the cloud when doing firmware updates.

It is powered through POE IEEE802.3af or 12Vdc. Compatible with ONVIF protocol for integration with video surveillance recorders.

Made of vandal-resistant SUS316 stainless steel IK06.

Package content:

*Video intercom exterior panel
*Instructions for use
*Mounting material

-
+

Technical Specifications of the Akuvox E21V Video Intercom Panel

Brand Akuvox
Model E21V
Keypad Mechanical call button with LED call indicator
Outputs 2 relay for main, RS485 and audio locks
Inputs 2 pushbutton inputs
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Image sensor 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor
Viewing Angle 116° (H) / 60° (V)
Camera resolution 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video encoding H.264 y H.265
Audio Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Audio Format SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722
DTMF (RFC2833), SIP Info
Network interface Ethernet 10/100 BaseT / RS485 / RTSP
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Stainless steel SUS316
Degree of protection IP65
Temp. operation -40º C ~ +65º C
Dimensions 210 (H) x 120 (W) x 61 (D) mm
Power DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Weight 800 g
More Information
EAN 6933964803117
Hight 0.200
Length 0.100
Width 0.100
System IP
SERIE Abrepuertas
Color Silver
Color Portero/Videoportero Color
Type Entrance panel
Product Brand Akuvox
