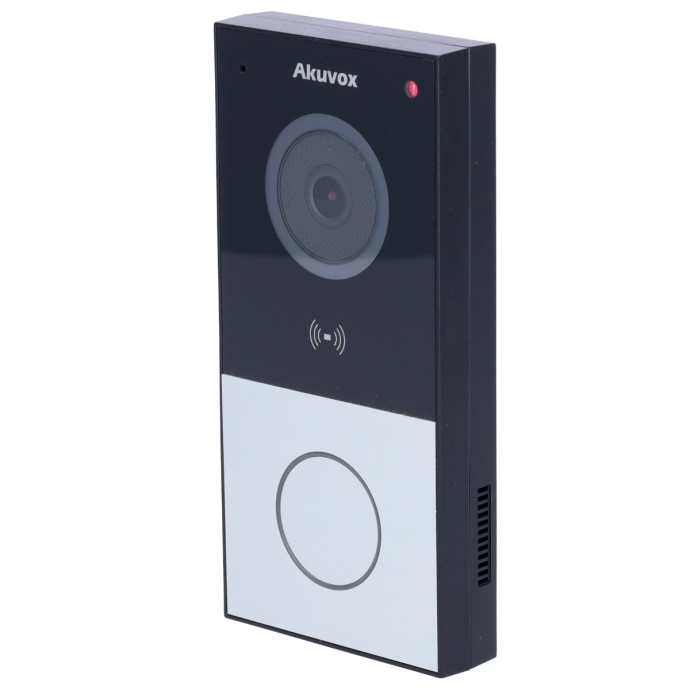

Akuvox E12W Surface-Mounted POE Cloud WiFi Video Intercom Panel with Microphone

SKU
AK-E12W
Brands: Akuvox
€123.66 Tax included
Akuvox
Availability: On request
1 to 7 days

IP Video door entry panel for WiFi surface

This Akuvox panel is a last generation panel, which will offer us security and comfort in our home or small communities. It integrates a 2Mpx full HD camera with wide-angle lens, which will allow us a clear and wide view of the visits, even if the light conditions are poor.

It stands out for its versatility in access control, as it supports door opening by means of 13.56MHz MF cards, NFC and Bluetooth. It has a capacity of up to 5000 users. It incorporates a mechanical call button with LED illumination, which can be configured. It has a relay output for the main lock.

It allows connectivity with Ethernet 10/100 BaseT, WiFi 802.11b/g/n and POE IEEE802.3af, thus achieving a better integration to local networks or through the cloud. Notifications can be received through the Smartplus mobile app, making calls between devices, facilitating remote management of the system from anywhere.

The E12W offers advanced features such as: full configuration via web browser, local storage via microSD up to 32GB, remote firmware updates, making it very versatile. It has an IP65 degree of protection that allows it to be installed outdoors, withstanding adverse weather conditions.

It has an elegant and compact design, with straight lines, made of satin plastic, which integrates perfectly into any facade. Its installation is very simple on the surface, facilitating the assembly without the need for complex works.

This video door phone combines technology with ease of use, an elegant design and a reliable solution.

Technical Specifications of the WiFi Surface IP Video Intercom Panel

Brand Akuvox
Model E12W
Access control Door opening with MF card 13.56 MHz, NFC and Bluetooth, with records
Capacity Contacts: 1.000
RFID users: 5.000 card(s)
Keypad Mechanical call button with configurable LED illumination
Outputs 1 of relay for main lock and Wiegand OUT
Inputs 2 inputs and Wiegand IN
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Image sensor 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor
Viewing Angle 123° (H) / 69° (V)
Camera resolution 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video encoding H.264 y H.265
Audio Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Audio Format SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722
DTMF (RFC2833), SIP Info
Memory MicroSD slot up to 32 GB
Network interface Ethernet 10/100 BaseT / RS485 / RTSP / WiFi 802.11b/g/n
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Elegant satin plastic
Degree of protection IP65
Temp. operation -40º C ~ +60º C
Dimensions 146 (H) x 70(An) x 23 (D) mm
Power DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Weight 600 g
More Information
EAN6933964802370
Hight0.200
Length0.150
Width0.200
ACCESOS - SISTEMAIP
ACCESOS - SERIEWiFi
ColorBlack
Color Portero/VideoporteroColor
TypeEntrance panel
Product BrandAkuvox
